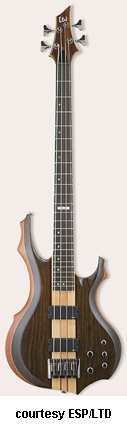

 LTD | | ELECTRIC BASS: F SERIES | | In 2003 the B-200 Series recieved flamed maple tops, and See-Thru Black Cherry and See-Thru Black finishes were introduced. | | F-4E | | - offset double cutaway sculpted mahogany body with an ebony top, five-piece maple/mahogany NTB, 24-fret ebony fingerboard with offset pearl dots and 12th fret F-4 logo inlays, matching finish headstock, two-per-side tuners, BB-604 bridge, STB, two SB-4 pickups, ABQ-3 active electronics, five knobs (MV, balance, b, m, t), black nickel hardware, available in Natural Gloss finish, 34 in. scale, new 2008. |

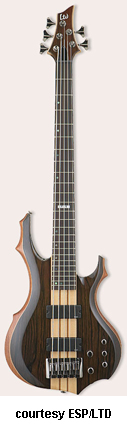

| F-5E FIVE-STRING | | - similar to the F-4E, except in five-string configuration with 3/2-per-side tuners, a BB-605 bridge, and SB-5 pickups, available in Natural Gloss finish, new 2008. |

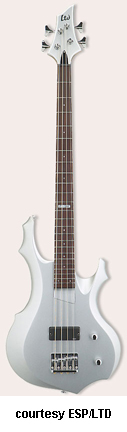

| F-54 | | - offset double cutaway sculpted basswood body, bolt-on maple neck, 24-fret rosewood fingerboard with dots and 12th fret F-54 logo inlays, matching finish headstock, two-per-side tuners, DB-4 bridge, single SB-4 pickup, ATB-1 active electronics, two knobs (MV, tone boost), chrome hardware, available in Silver Satin finish, 34 in. scale, new 2008. |

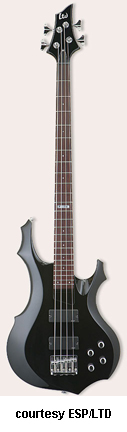

| F-104 | | - offset double cutaway sculpted agathis body, bolt-on maple neck with 24 XJ fret rosewood fingerboard, white dot inlays, 4 String Deluxe Bass bridge, two pickups with 2-band active EQ, black hardware, available in Black, Black Cherry (2006-07), Grey Satin (disc.), or Titanium (disc.) finish, 35 in. scale, mfg. 2003-present. |

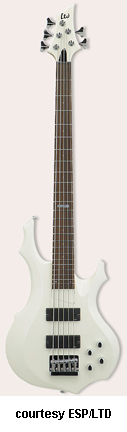

| F-105 FIVE-STRING | | - similar to the F-104, except in five-string configuration with 3/2-per-side tuners, a DB-5 bridge, and SB-5 pickups, available in Olympic White finish, new 2008. |

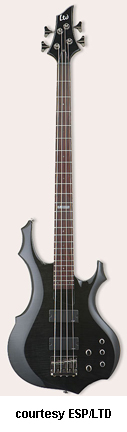

| F-154DX | | - offset double cutaway sculpted basswood body, flamed maple top, bolt-on maple neck, 24-fret rosewood fingerboard with pearl dots and 12th fret F-154DX model name inlays, matching finish headstock, two-per-side tuners, DB-4 bridge, STB, two SB-4 pickups, ABQ-3 active electronics, five knobs (MV, balance, t, m, b), black nickel hardware, available in See-Through Black finish, 35 in. scale, new 2008. |

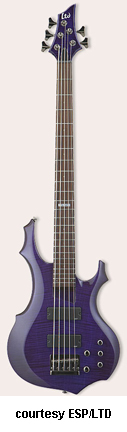

| F-155DX FIVE-STRING | | - similar to the F-154DX, except in five-string configuration with 3/2-per-side tuners, a DB-5 bridge, and SB-5 pickups, available in See-Through Purple finish, new 2008. |
| F-204 | | - offset double cutaway sculpted mahogany body, bolt-on maple neck with rosewood fingerboard, white dot inlays, 24 XJ frets, 4 String Deluxe Bass bridge, two EMG-HZ pickups with 3-band active EQ, black hardware, available in Black, Titanium, Grey Satin, Midnight Purple, or Gun metal Blue finishes, mfg. 1999-2003. |
| F-205 FIVE-STRING | | - similar to F-204 Bass, except in a five-string configuration and 3/2-per-side tuners, available in Black, Grey Satin, Midnight Purple, or Gun Metal Blue finish, mfg. 1999-2003. |
| F-254 | | - offset double cutaway with many points and contours, agathis body, 5-piece maple/walnut fingerboard with dot and 12th fret model name inlays, two EMG-HZ pickups, ESP-BB bridge, five knobs, Cosmo black hardware, available in Titanium or Black finish, mfg. 2004-05. |
| F-254 FM | | - similar to the F-254, except has a flame maple top with a matching headstock, available in See-Thru Black or See-Thru Black Cherry finish, mfg. 2006-07. |

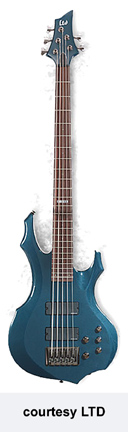

| F-255 FIVE-STRING | | - similar to the F-254, except in five-string configuration and 3/2-per-side tuners, available in Gun Metal Blue finish, mfg. 2004-05. |
| F-255 FM Five-String | | - similar to the F-255, except has a flame maple top and matching headstock, available in See-Thru Black or See-Thru Black Cherry finish, mfg. 2006-07. |

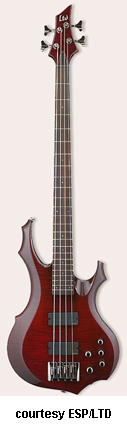

| F-404 FM | | - F-style mahogany body with a flame maple top, five-piece maple/walnut neck NTB, 24-fret rosewood fingerboard with full-length tribal graphic inlays, matching headstock with two-per-side Grover tuners, ESP BB bridge, two EMG pickups, five knobs (v, t, m, b, balance), EMG B64 active electronics, black chrome hardware, available in See-Thru Black or See-Thru Black Cherry finish, 35 in. scale, mfg. 2006-present. |

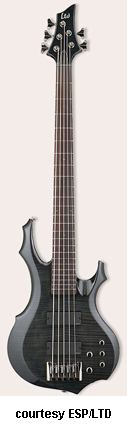

| F-405(FM) FIVE-STRING | | - similar to the F-404(FM), except in five-string configuration and 3/2-per-side tuners, available in See-Thru Black finish, mfg. 2007-present. |
| DF-404 | | - offset double cutaway mahogany body with contours, five-piece maple neck, 24-fret rosewood fingerboard with tribal graphic inlay, two EMG active pickups, ESP BB bridge, five knobs, Cosmo black hardware, available in Black finish, mfg. 2004-05. |
|
|
