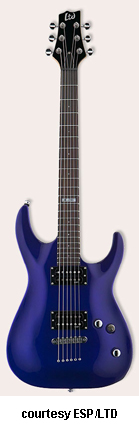

 LTD | | ELECTRIC: H SERIES | | In 2007, the H-50, H-100FM, H-250, and H-1000 were all updated with a wider headstock and renamed the H-51, H-101FM, H-251, and H-1001 respectively. | | H-50/H-51 | | - offset double cutaway agathis body, maple neck, rosewood fingerboard, two humbucker pickups, three-per-side tuners, black hardware, available in Black (disc.), Black Cherry, or Electric Blue finish, mfg. 2003-present. |
| H-100 | | - offset double cutaway arched top alder body, bolt-on maple neck, 22-fret rosewood fingerboard with white dot inlay/block inlay on 12th fret, tune-o-matic bridge/stop tailpiece, 'curved point' peghead, 3-per-side tuners, chrome hardware, 2 LTD humbucker pickups, volume/tone controls, 3-way selector toggle, available in Black, Candy Apple Red, and Pearl White finishes, mfg. 1998-2002. |

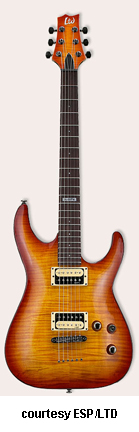

| H-100FM/H-101FM | | - similar to the H-100, except has an agathis body with a flamed maple top, available in Amber Sunburst or See-Thru Aqua (disc.), mfg. 2003-present. |
| H-200 (LTD HORIZON) | | - offset double cutaway alder or mahogany arched top body with natural binding, bolt-on maple neck, 24-fret bound rosewood fingerboard with white dot inlay/block inlay on 12th fret, tune-o-matic bridge/stop tailpiece, bound 'curved point' peghead, 3-per-side tuners, chrome hardware, 2 Duncan-designed humbucker pickups, volume/tone controls, 3-way selector toggle, available in Black, Honey Sunburst, See-Through Blue, See-Through Purple, or See-Through Red finishes, mfg. 1995-2000. |
| H-201 | | - similar to Model H-200 except has mahogany body with flamed maple top, block position markers and model name inlaid at 12th fret, black hardware, natural top and body binding, Duncan-designed HB-102 pickup set, 1 volume/1 tone control, 5-way Megaswitch, available in See-Through Green, See-Through Red, See-Through Orange, or See-Through Blue, mfg. 2001 only. |
| H-202 | | - similar to the H-201, available in See-Thru Red, See-Thru Green, or See-Thru Blue, mfg. 2002-03. |
| H-207 SEVEN-STRING | | - seven-string configuration, offset double cutaway ash body, bolt-on maple neck, 24 XJ fret rosewood fingerboard with block inlays, black hardware, tune-o-matic 7 bridge, white neck binding, natural body binding, 3/4-per-side tuners, two humbucker Duncan Design 7 pickups, two knobs (v, tone), three-way switch, available in See-Through Black, See-Through Black Cherry, or See-Through Aqua finish, mfg. 2000 only. |

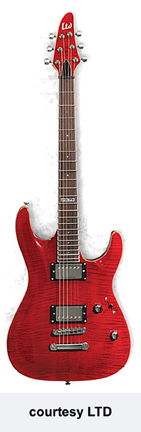

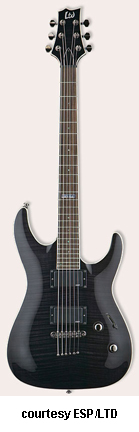

| H-250/H-251 | | - offset double cutaway Strat-style agathis body, flamed maple top, three-piece maple neck, 24-fret rosewood fingerboard with dot and 12th fret model name inlays, three-per-side tuners, Tune-O-Matic bridge, two EMG-HZ humbucker pickups, two knobs, three-way switch, chrome hardware, available in See-Thru Black, See-Thru Blue (disc.) or See-Thru Red (disc.) finish, mfg. 2004-present. |
| H-300 | | - similar to H-200, except has mahogany neck-through body with figured maple top, mahogany neck with rosewood fingerboard, two EMG-HZ humbucker pickups, available in See-Through Black, See-Through Black Cherry, or See-Through Aqua finish, mfg. 1999-2000. |
| H-301 | | - similar to Model H-300 except has flamed maple top, maple neck, tune-o-matic bridge with stop tailpiece, EMG HZ H-1 pickup set, available in See-Through Green, See-Through Red, See-Through Blue, or See-Through Orange finishes, mfg. 2001 only. |
| H-302 | | - similar to the H-301, available in Amber Sunburst, See-Thru Black Cherry, or See Thru Black, mfg. 2002-03. |
| H-307 SEVEN-STRING | | - similar to Model H-207, except has neck-thru body, mahogany body with figured maple top, mahogany neck, two humbucker EMG HZ-707 pickups, available in See-Through Black, See-Through Black Cherry, or See-Through Aqua finish, mfg. 2000-01. |
| H-400 | | - offset double cutaway Strat-style mahogany body, flame maple top, three-piece mahogany neck, 24-fret rosewood fingerboard with dot and 12th fret model name inlay, two Seymour Duncan JB/59 humbucker or EMG pickups, Tune-O-Matic bridge, two knobs, five-way switch, black hardware, available in Amber Sunburst, Amber Cherry Sunburst, or See-Thru Black finish, mfg. 2004-06. |

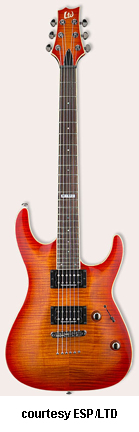

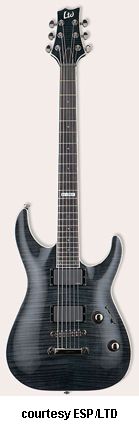

| H-500 | | - double offset cutaway mahogany body, arched flamed maple top, white-bound body, three-piece maple NTB, 24-fret bound rosewood fingerboard with abalone dots and 12th fret model name inlays, matching finish bound headstock, three-per-side tuners, tune-o-matic bridge, STB, two JB/59 Seymour Duncan humbucker or two EMG-81 pickups, two knobs (v, tone), three-way pickup switch, black nickel hardware, available in Amber Cherry Sunburst (SD pickups) or See-Thru Black (EMG pickups) finish, 25.5 in. scale, mfg. 2007-present. |
 |  |

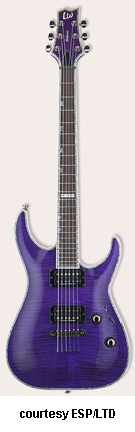

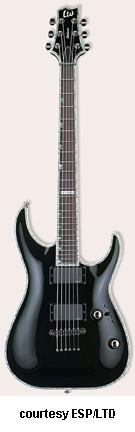

| H-1000/H-1001 | | - double offset cutaway mahogany body with arched flamed maple top, three-piece maple neck, 24-fret rosewood fingerboard with abalone offset block and model name at 12th fret inlays, full white with abalone body binding, TonePros locking bridge, two JB/59 Seymour Duncan pickups, two black knobs, five-way switch, black hardware, available in Black, Amber Sunburst (disc.), See-Through Aqua (disc.), See-Through Blue (new 2008), or See-Through Purple (new 2008) finish, 25.5 in. scale, mfg. 2002-present. |
| HB-300 BARITONE | | - double offset cutaway maple body, three-piece maple body, 24-fret rosewood fingerboard with offset blocks and model name at 12th fret inlays, three-per-side tuners, tune-o-matic bridge, STB, two Duncan-designed HB-102 pickups, two knobs, toggle switch, black hardware, available in Titanium or Black finishes, 27 in. scale mfg. 2002-03. |
|
|
