 IBANEZ | | ELECTRIC: STEVE VAI SIGNATURE (JEM/UV) SERIES | | The JEM Series was co-designed by Steve Vai, introduced in 1987, and feature the Monkey-Grip handle cut out of the body. The Universe Series (UV) was introduced in 1990 and are all seven-string models. | | JEM555 | | - offset double cutaway American basswood body, bolt-on maple neck, 24-fret rosewood fingerboard with pearl dot/vine inlay with Steve Vai signature block inlay at 24th fret, Lo TRS II tremolo, six-on-a-side tuners, charcoal hardware, humbucker/single coil/humbucker DiMarzio pickups, volume/tone control, five-way switch, available in Black or White finish, mfg. 1994-2000. |
| JEM555L Left-Handed | | - similar to the JEM555 except in left-handed configuration, available in Black finish, mfg. 1997-2000. |

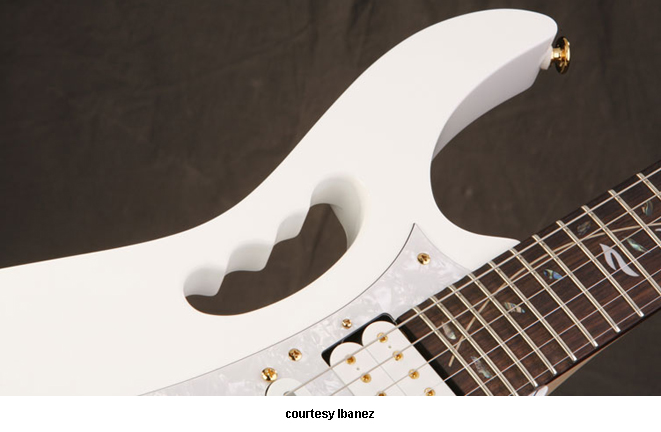

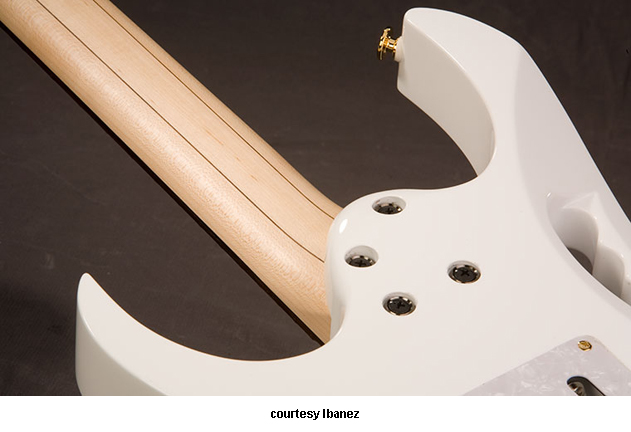

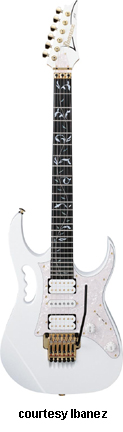

| JEM7 V | | - offset double cutaway alder body, pearloid pickguard, bolt-on maple neck, 24-fret ebony fingerboard with pearl/abalone vine inlay, Lo Pro Edge tremolo, six-on-one-side tuners, humbucker/single coil/humbucker DiMarzio pickups, volume/tone control, five-way switch, gold hardware, available in White finish, mfg. 1993-present. |
| JEM7 D | | - similar to JEM7 V, except has American Basswood body, rosewood fingerboard, screw-head position markers, two DiMarzio Breed humbucker pickups and one Dimarzio Special single coil HSH, chrome hardware, available in Black finish, mfg. 1999-2003. |
| JEM7 | | - similar to the JEM7 V, except features an American basswood body, brushed aluminum pickguard, 24-fret rosewood fingerboard with screw inlay, brushed chrome hardware, available in Burnt Stain Blue finish, mfg. 1996-98. |

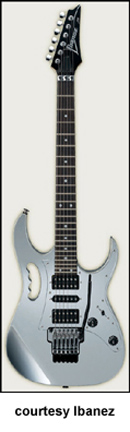

| JEM77B (SECOND VERSION) | | - JEM-style basswood body, five-piece Prestige maple/walnut neck, 24 6105 fret rosewood fingerboard with dot inlay, black headstock with six-on-one-side tuners, Edge Pro tremolo bridge and locking nut, chrome metal pickguard, two exposed humbucker and one single coil DiMarzio pickups HSH, two knobs (v, tone), five-way switch, chrome hardware, available in Rock Mirror finish, mfg. 2003-06. |
| JEM77 GMC (GREEN MULTI-COLOR) | | - offset double cutaway basswood body, transparent pickguard, bolt-on maple neck, 24-fret rosewood fingerboard with fluorescent vine inlay, double locking vibrato, six-on-one-side tuners, charcoal hardware, humbucker/single coil/humbucker DiMarzio pickups, volume/tone control, five-way switch, available in Green Multi Color finish, mfg. 1992-93. |
| JEM77 BFP (Blue Floral Pattern) | | - similar to JEM77 GMC, except has maple fingerboard with Blue vine inlay, body matching peghead, available in Blue Floral Pattern finish, mfg. 1991-94. |
| JEM77 FP (Floral Pattern) | | - similar to JEM77 GMC, except has green/red vine fingerboard inlay, body matching peghead, available in Floral Pattern finish, mfg. 1988-1998. |
| JEM77 PMC (Purple Multi-Color) | | - similar to JEM77 GMC, except has a maple fingerboard with 3 color pyramid inlay, available in Purple Multi Color finish, mfg. 1992-93. |

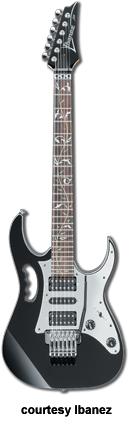

| JEM77V | | - offset double cutaway RG-style basswood body with bass bout hand-grip cutout, bolt-on five-piece maple/walnut JEM Prestige neck, 24-fret rosewood fingerboard with pearl/abalone vine inlays, black headstock with six-on-one-side tuners, Edge Pro tremolo with locking nut, chrome pickguard, two DiMarzio Breed humbucker and one DiMarzio Breed single coil pickups HSH, two knobs (v, tone), five-way pickup switch, chrome hardware, available in Black finish, hardshell case included, mfg. 2007-present. |
| JEM777 | | - offset double cutaway basswood body, black pickguard, bolt-on maple neck, 24-fret maple fingerboard with three-color vanishing pyramid inlay, double locking vibrato, six-on-one-side tuners, charcoal hardware, humbucker/single coil/humbucker DiMarzio pickups, volume/tone control, five-way switch, available in Desert Sun Yellow or Shocking Pink (1989-1990) finish, mfg. 1988-1996. |
| JEM777 V | | - similar to JEM777, except has a vine pattern instead of pyramids, available in Black, Desert Sun Yellow, or Shocking Pink finish, mfg. 1989-1993. |
| JEM777LG Limited Edition | | - similar to the JEM777, except was the first production of the Steve Vai model (777 guitars were produced) available in Lochness Green finish, mfg. 1987 only. |

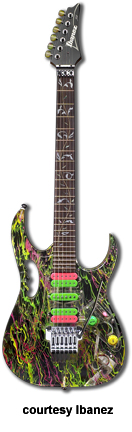

| JEM 20TH ANNIVERSARY | | - reissue of Steve Vai's original RG model, offset double cutaway acrylic resin body with three-dimensional multi-color inside, bolt-on five-piece JEM Prestige neck, 24-fret rosewood fingerboard with pearl and abalone vine inlays, standard headstock with six-on-one-side tuners, Edge Pro tremolo bridge with locking nut, clear pickguard, two DiMarzio humbucker pickups and one DiMarzio single coil pickup HSH (pickups have green and pink covers), two colored (green/yellow) knobs (v, tone), five-way pink pickup switch, chrome hardware, limited mfg. 2007 only. |
| UV7 | | - offset double cutaway basswood body, bolt-on maple neck, 24-fret rosewood fingerboard with pearl dot inlay, Lo Pro Edge 7 double locking tremolo, seven-on-one-side tuners, black pickguard, chrome hardware, two humbucker and one single coil DiMarzio pickups HSH, two knobs (v, tone), five-way switch, available in Black finish, mfg. 1990-97. |
| UV7 P | | - similar to UV7, except has white pickguard, pearl abalone pyramid inlay, available in White finish, mfg. 1990-93. |
| UV77 | | - similar to UV7, except has three-color pyramid inlay, available in Multi-Colored finish, mfg. 1990-93. |
| UV777 GR (FIRST VERSION) | | - similar to UV7, except has a maple fingerboard, available in Green finish, mfg. 1991-93. |

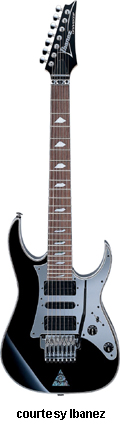

| UV777 (SECOND VERSION) | | - similar to UV7, except features disappearing pyramid fingerboard inlay, available in Black finish, mfg. 1998-present. |
|
|
