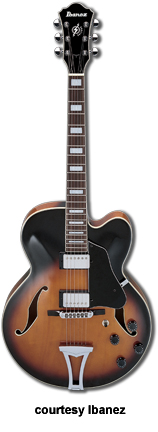

 IBANEZ | | ELECTRIC: ARTCORE SERIES | | The Artcore Series replaced the Artstar Series. All models in this series are hollowbody archtops that are mainly based on some of Gibson's popular designs such as the ES-5, ES-175, and ES-335. | | AF75 | | - single cutaway jumbo hollow body archtop ES-5 style, maple back/top/sides, two f-holes, body binding, mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Brown Sunburst, Trans. Blue Sunburst (disc.), Trans. Orange (2002-06), or Trans. Red Sunburst (2007-present) finish, mfg. 2002-present. |

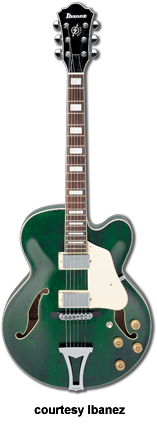

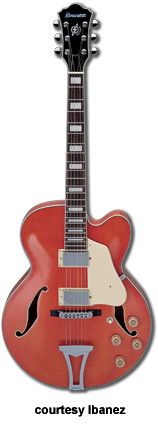

| AF75D | | - similar to the AF75, except has a cream pickguard and cream colored knobs, available in Trans. Green (2007-present) or Trans. Orange finish, mfg. 2005-present. |

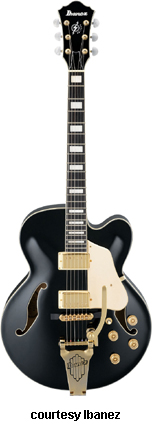

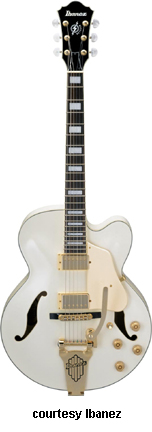

| AF75TDG | | - similar to the AF75, except has a Vintage Vibrato tailpiece, cream pickguard, gold colored knobs, and gold hardware, available in Black (new 2009) or Ivory finish, mfg. 2008-present. |

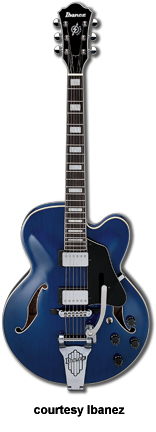

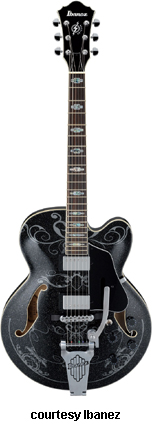

| AFS75T | | - similar to the AF75, except has a Vintage Vibrato tailpiece, available in Neo Western Black Metallic (new 2009), Ocean Blue (2006 only), Trans. Blue (2002-08), Trans. Red, or Turquoise (2004-05) finish, mfg. 2002-present. |
| AFS75TD | | - similar to the AF75T, except has a cream pickguard and cream colored knobs, available in Ocean Blue (2006-08), Silver (2007-09), or Turquoise (2004-05) finish, mfg. 2004-08. |
| AFS77T | | - single cutaway jumbo hollow body archtop ES-5 style, maple back/top/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, Vintage Vibrato tailpiece, pickguard, two exposed humbucker pickups, four knobs, three-way switch, black hardware, available in Metallic Gray finish, mfg. 2004-05. |

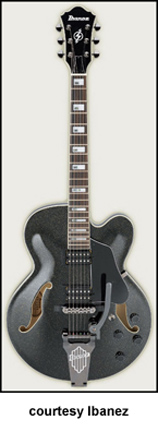

| AFS78T | | - single cutaway jumbo hollow body archtop ES-5 style, maple back/top/sides, two bound f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, Vintage Vibrato tailpiece, raised black pickguard, two exposed humbucker pickups, four knobs, three-way switch, chrome hardware, available in Nebula Black finish, mfg. 2006 only. |
| AF84E | | - jumbo hollow body archtop, spruce top, flamed maple back and sides, two f-holes, body binding, set three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, rosewood bridge, trapeze tailpiece, pickguard, single exposed humbucker pickup, two knobs, chrome hardware, available in Dark Violin Sunburst finish, mfg. summer 2005 only. |
| AF85 | | - single cutaway jumbo hollow body archtop ES-5 style, flame maple top/back/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Violin Sunburst finish, mfg. 2003-05. |

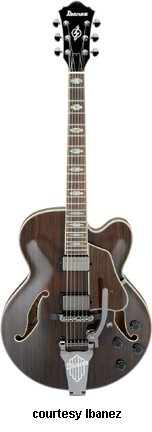

| AFS85T | | - single cutaway jumbo hollow body archtop ES-5 style, cordia top, back, and sides, two f-holes, multi-layer B/W binding, mahogany neck, 22-fret bound rosewood fingerboard with special plus sign block inlays, bound headstock, three-per-side tuners, rosewood-mounted adj. bridge, Vintage Vibrato tailpiece, raised cordia pickguard, two humbucker pickups, four knobs (two v, two tone), three-way pickup switch, chrome hardware, available in Natural (cordia) finish, mfg. 2008 only. |

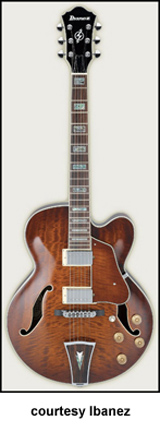

| AF86 | | - single cutaway jumbo hollow body archtop ES-5 style, flame maple top/back/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, adjustable rosewood-mounted bridge, trapeze wood tailpiece, raised wood pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Violin Sunburst finish, mfg. 2006 only. |

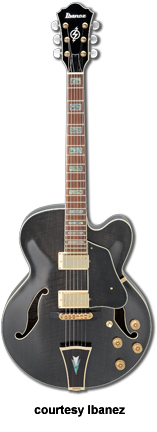

| AF95 | | - single cutaway jumbo hollow body archtop ES-5 style, flame maple top/back/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with pearl block inlays, three-per-side tuners, adj. rosewood-mounted bridge, trapeze wood tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, gold hardware, available in Trans. Black finish, mfg. 2007-present. |

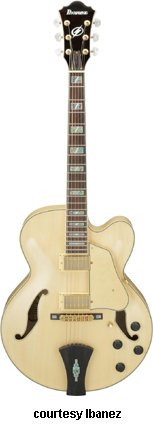

| AF100 CUSTOM | | - single cutaway jumbo hollow body archtop ES-5 style, maple top, back, and sides, two f-holes, multi-layer B/W binding, five-piece maple/walnut neck, 22-fret bound rosewood fingerboard with pearl block inlays, bound headstock, three-per-side tuners, rosewood-mounted adj. bridge, rosewood tailpiece with custom design inlay, raised bound cream pickguard, two humbucker pickups, four black knobs (two v, two tone), three-way pickup switch, gold hardware, available in Natural finish, mfg. 2008 only. |

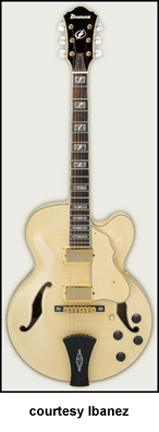

| AF105 CUSTOM | | - single cutaway jumbo hollow body archtop ES-5 style, flame maple top/back/sides, two f-holes, body binding, five-piece maple/bubinga neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, wood tailpiece, raised pickguard, two humbucker pickups, four knobs, three-way switch, gold hardware, available in Natural finish, mfg. 2005-present. |

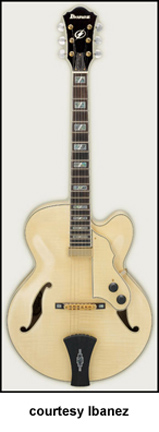

| AF105F Custom | | - similar to the AF105, except has a single humbucker pickup, two knobs mounted on pickguard, and no pickup switch, mfg. 2005-07. |

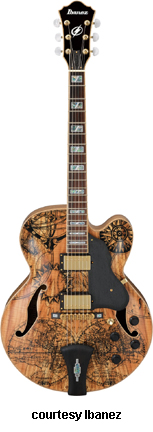

| AF105SM-Spalted Maple | | - similar to the AF105 except has spalted maple top, back, and sides, available in Exotic Explorer finish, new 2009. |

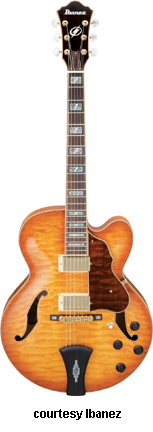

| AF125 CUSTOM | | - single cutaway jumbo hollow body archtop ES-5 style, quilted maple top, back, and sides, two f-holes, multi-layer B/W binding, five-piece maple/walnut neck, 22-fret bound rosewood fingerboard with pearl block inlays, bound headstock, three-per-side tuners, rosewood-mounted adj. bridge, rosewood tailpiece with custom design inlay, raised bound dark wood pickguard, two humbucker pickups, four black knobs (two v, two tone), three-way pickup switch, gold hardware, available in Amber Burst finish, mfg. 2008-present. |

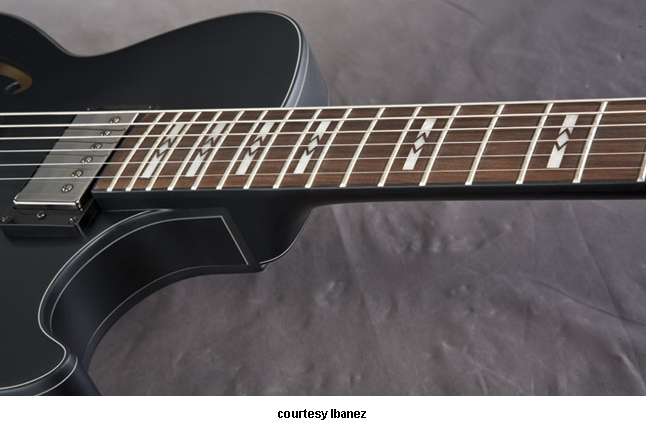

| AGS73B | | - single cutaway jumbo hollow body archtop, maple top, back, and sides, two f-holes, one-piece mahogany set neck, 22-fret rosewood fingerboard with diamond inset in block inlays, three-per-side tuners, tune-o-matic bridge, stop tailpiece, two humbucker pickups, four knobs (two v, two tone), three-way pickup switch, black chrome hardware, available in Black Flat finish, mfg. 2008 only. |

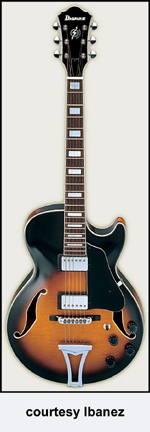

| AG75 | | - single cutaway jumbo hollow body archtop, maple back/top/sides, two f-holes, body binding, mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Brown Sunburst finish, mfg. 2002-present. |

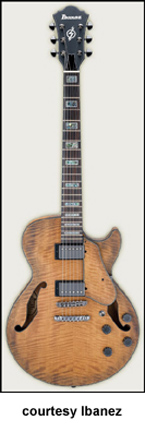

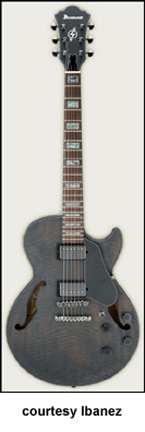

| AGS83B | | - single cutaway jumbo hollow body archtop, flamed maple top/back/sides, two f-holes, black/white B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, tune-o-matic bridge, stop tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Antique Burst Flat or Trans. Black Flat (2006-08) finish, mfg. 2006-present. |

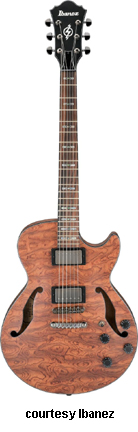

| AGS83BBG | | - similar to the AGS83B, except has bubinga top, back, and sides, mfg. 2008 only. |
| AG85 | | - single cutaway jumbo hollow body archtop, figured bubinga top/back/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Trans. Red finish, mfg. 2003-05. |

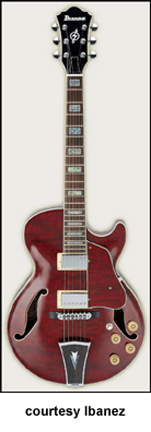

| AG86 | | - single cutaway jumbo hollow body archtop, figured bubinga top/back/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, adjustable rosewood-mounted bridge, trapeze wood tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Trans. Red finish, mfg. 2006 only. |

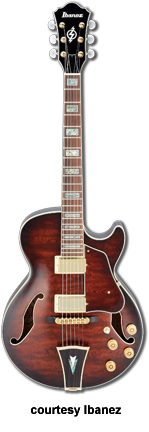

| AG95 | | - single cutaway jumbo hollow body archtop body, figured bubinga top/back/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with pearl block inlays, three-per-side tuners, adj. rosewood-mounted bridge, trapeze wood tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, gold hardware, available in Dark Brown Sunburst finish, mfg. 2007-present. |

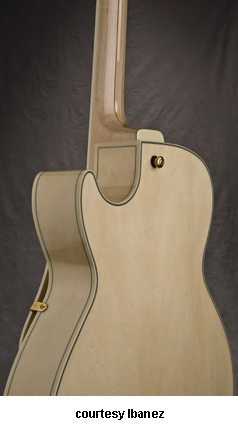

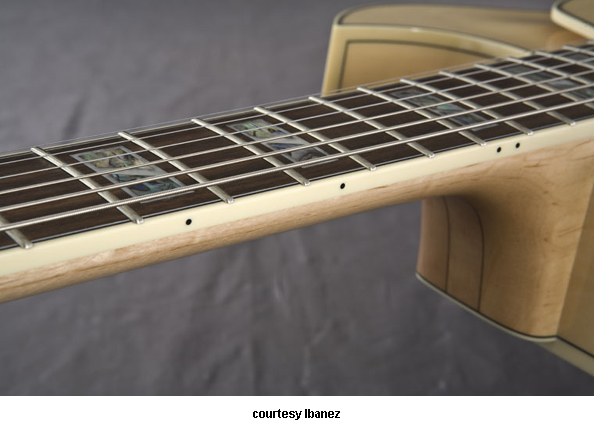

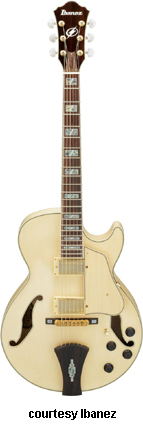

| AG100 CUSTOM | | - single cutaway jumbo hollow body archtop, maple top, back, and sides, two f-holes, multi-layer B/W binding, five-piece maple/walnut neck, 22-fret bound rosewood fingerboard with pearl block inlays, bound headstock, three-per-side tuners, rosewood-mounted adj. bridge, rosewood tailpiece with custom design inlay, raised bound cream pickguard, two humbucker pickups, four black knobs (two v, two tone), three-way pickup switch, gold hardware, available in Natural finish, mfg. 2008 only. |

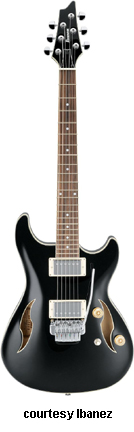

| AJD71T | | - offset double cutaway Strat-style semi-hollow body, maple top, back, and sides, two unique-shaped bound f-holes, multi-layer B/W binding, one-piece mahogany set neck, 22-fret bound rosewood fingerboard with dot inlays, bound offset headstock, three-per-side tuners, ACT tremolo bridge, two humbucker pickups, two gold numbered knobs (v, tone), three-way pickup switch, chrome hardware, available in Black finish, mfg. 2008 only. |

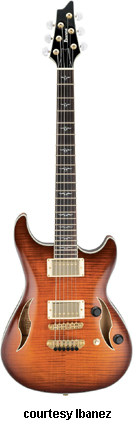

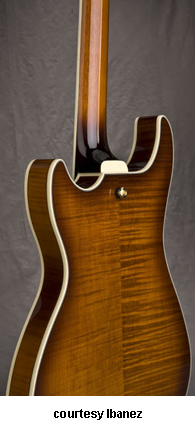

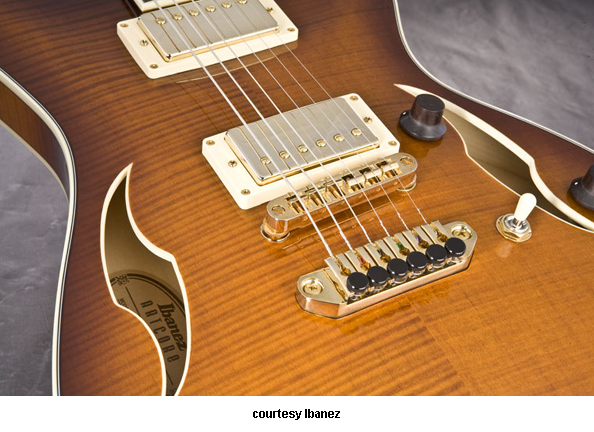

| AJD91 | | - offset double cutaway Strat-style semi-hollow body, flamed maple top, back, and sides, two unique-shaped bound f-holes, multi-layer B/W binding, three-piece maple/mahogany set neck, 22-fret bound rosewood fingerboard with custom decorative inlays, bound offset headstock, three-per-side tuners, tune-o-matic bridge, fine-tune tailpiece, two humbucker pickups, two black knobs (v, tone), three-way pickup switch, gold hardware, available in Violin Sunburst finish, mfg. 2008-present. |
| AK75D | | - single sharp cutaway jumbo hollow body archtop ES-225 style, maple top/back/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, rosewood bridge, trapeze tailpiece, raised pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Gold Topfinish, mfg. summer 2005 only. |
| AK85 | | - single sharp cutaway jumbo hollow body archtop ES-175 style, spruce top flame maple back and sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, rosewood bridge, trapeze tailpiece, matching pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Dark Violin Sunburst finish, mfg. 2004-05. |

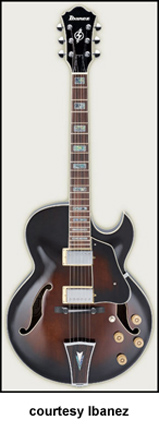

| AK86 | | - single sharp cutaway jumbo hollow body archtop ES-175 style, spruce top flame maple back and sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, adjustable rosewood bridge, trapeze wood tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Dark Violin Sunburst finish, mfg. 2006 only. |

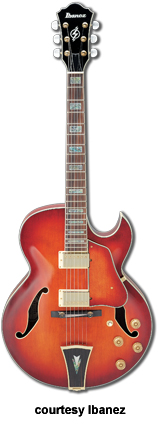

| AK95 | | - single cutaway jumbo hollow archtop ES-175 style body, spruce top, flamed maple back and sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with pearl block inlays, three-per-side tuners, adj. rosewood-mounted bridge, trapeze wood tailpiece, raised matching pickguard, two humbucker pickups, four knobs, three-way switch, gold hardware, available in Dark Honey Sunburst finish, mfg. 2007-present. |

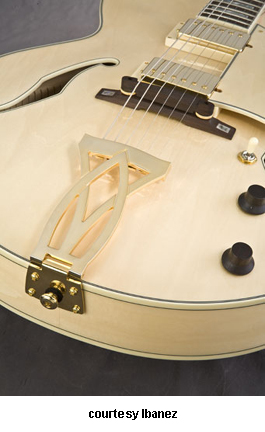

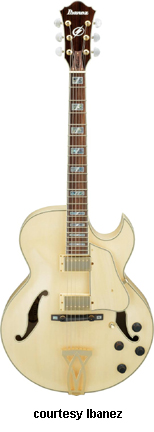

| AK100 CUSTOM | | - single sharp cutaway ES-175-style jumbo hollow body archtop, maple top, back, and sides, two f-holes, multi-layer B/W binding, five-piece maple/walnut neck, 22-fret bound rosewood fingerboard with pearl block inlays, bound headstock, three-per-side tuners, rosewood-mounted adj. bridge, gold custom trapeze tailpiece inlay, raised bound cream pickguard, two humbucker pickups, four black knobs (two v, two tone), three-way pickup switch, gold hardware, available in Natural finish, mfg. 2008 only. |

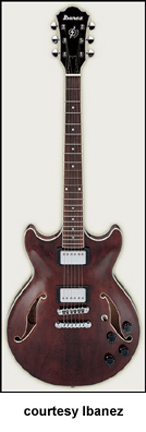

| AM73 | | - double cutaway thin hollow body archtop ES-335 style, maple back/top/sides, two f-holes, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Trans. Blue (2002-06) or Trans. Brown finish, mfg. 2002-07. |

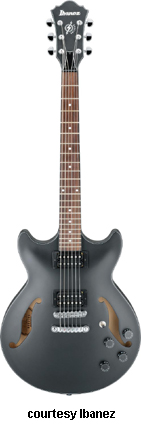

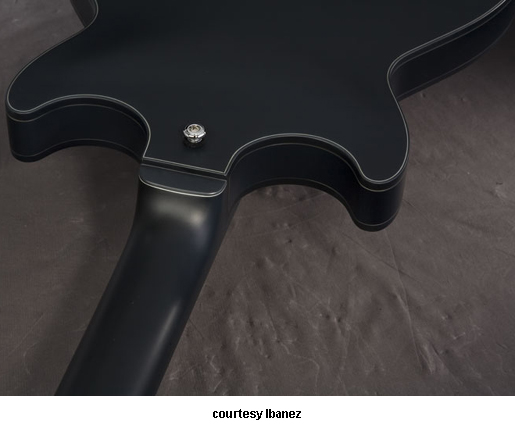

| AM73B | | - similar to the AM73, except has no bindings, no pickup covers, and available in Black Flat finish, mfg. 2008-present. |
| AM73T | | - similar to the AM73, except has a Vintage Vibrato bridge/tailpiece, available in Trans. Blue, Trans. Brown, or Trans. Red finish, mfg. 2002-04. |
| AM77 | | - double cutaway thin hollow body archtop ES-335 style, maple back/top/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, Vintage Vibrato tailpiece, pickguard, two exposed humbucker pickups, four knobs, three-way switch, black hardware, available in Nebula Black finish, mfg. 2004 only. |

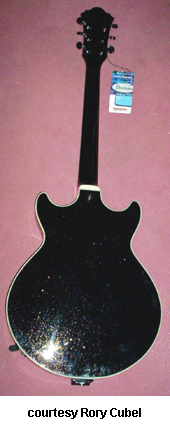

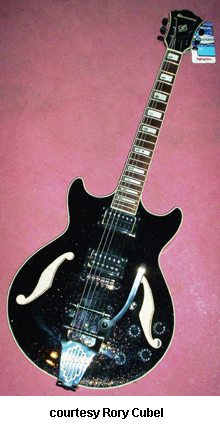

| AM77T | | - similar to the AM77, except has a Vintage Vibrato bridge/tailpiece, mfg. 2005 only. |

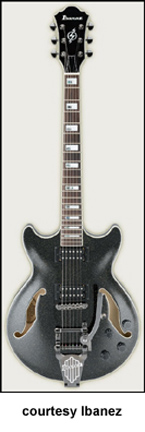

| AM78T | | - double cutaway thin hollow body archtop ES-335 style, maple back/top/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, Vintage Vibrato tailpiece, two exposed humbucker pickups, four knobs, three-way switch, chrome hardware, available in Nebula Black finish, mfg. 2006 only. |

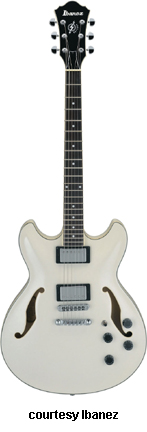

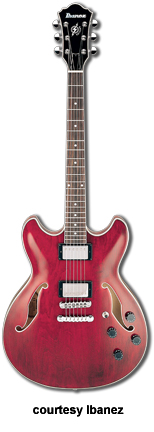

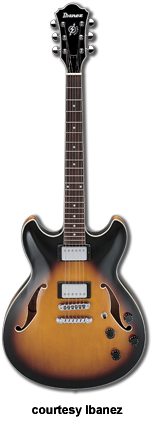

| AS73 | | - double cutaway thin hollow body archtop ES-335 style, maple back/top/sides, two f-holes, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Brown Sunburst, Ivory (new 2009), Trans. Brown Sunburst (2002-06), Trans. Cherry, or Trans. Red Sunburst (2007-08) finish, mfg. 2002-present. |

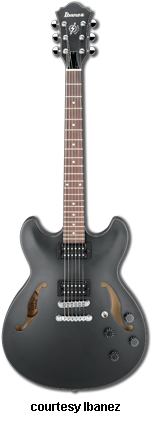

| AS73B | | - similar to the AS73, except has exposed humbucker pickups, no f-hole binding, and less body binding, available in Black Flat finish, mfg. summer 2007-present. |

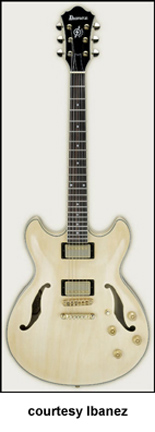

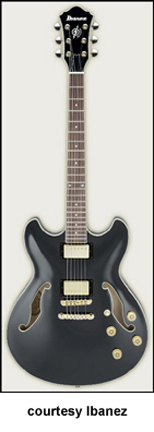

| AS73G | | - similar to the AS73, except has gold hardware available in Black or Natural finish, mfg. summer 2006 only. |
| AS73L Left-Handed | | - similar to the AS73, except in left-handed configuration, available in Trans. Cherry finish, new 2009. |

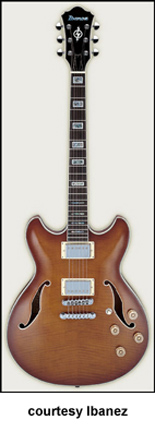

| AS83 | | - double cutaway thin hollow body archtop ES-335 style, flame maple top/back/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, fixed bridge, pickguard, two humbucker pickups, four knobs, three-way switch, chrome hardware, available in Violin Sunburst finish, mfg. 2004-06. |

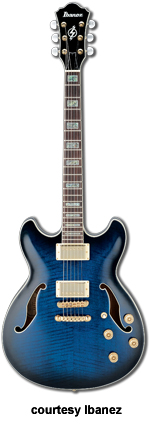

| AS93 | | - double cutaway thin hollow body archtop ES-335 style body, flamed maple top/back/sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with pearl block inlays, three-per-side tuners, tune-o-matic bridge, stop tailpiece, two humbucker pickups, four knobs, three-way switch, gold hardware, available in Blue Sunburst finish, mfg. 2007-present. |

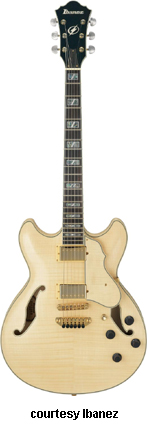

| AS103 CUSTOM | | - double cutaway thin hollow body archtop ES-335 style, flame maple top/back/sides, two bound f-holes, bound B/N/H, five-piece maple/bubinga neck, 22-fret rosewood fingerboard with block inlay, three-per-side tuners, Art1 tune-o-matic bridge, stop tailpiece, raised pickguard, two covered humbucker pickusp, four knobs, three-way switch, gold hardware, available in Natural finish, mfg. 2006-present. |
| AWD82 | | - offset double cutaway thin hollow body archtop RG style, bubinga top, maple top and sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with AWL block inlay, three-per-side tuners, fixed bridge, two humbucker pickups, two knobs, three-way switch, chrome hardware, available in Trans. Blue finish, mfg. 2005 only. |

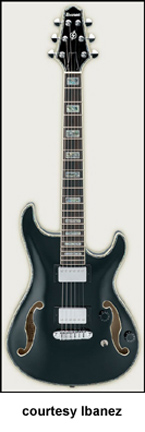

| AWD82LTD | | - similar to the AWD82, except has a maple top/back/sides with abalone binding and inlays, Black finish, mfg. 2005-06. |
| AWD82T | | - similar to the AW82, except has a tremolo bridge, Trans. Red finish, mfg. 2005 only. |

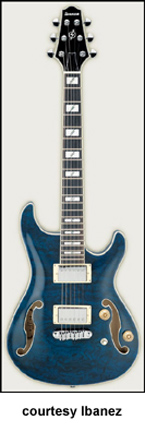

| AWD83 | | - offset double cutaway thin hollow body archtop RG style, bubinga top, maple back and sides, two bound f-holes, B/N/H binding, three-piece SX set neck, 22-fret rosewood fingerboard with original acrylic/abalone lightning bolt block inlay, three-per-side tuners, Short Stop III bridge/tailpiece, two humbucker pickups, two knobs, three-way switch, chrome hardware, available in Trans. Blue finish, mfg. 2006-07. |

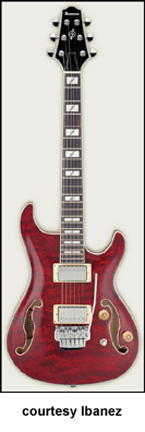

| AWD83T | | - similar to the AWD83 except has an ACT tremolo bridge, available in Trans. Red finish, mfg. 2006-07. |
| AXD71 | | - single cutaway ES-125 style body, maple top/back/sides, single f-hole, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, two humbucker pickups, two knobs, three-way switch, chrome hardware, Black finish, mfg. 2004 only. |
| AXD81 | | - single cutaway ES-125 style body, maple top/back/sides, single f-hole, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with Artcore dot inlay, three-per-side tuners, fixed bridge, two humbucker pickups, two knobs, three-way switch, chrome hardware, Violin Sunburst finish, mfg. 2004 only. |
| AXD82 | | - single cutaway ES-125 style body, spruce top, maple back and sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with Artcore dot inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, two humbucker pickups, two knobs, three-way switch, chrome hardware, Dark Violin Sunburst finish, mfg. 2005 only. |
| AXD83P | | - single cutaway ES-125 style body, spruce top, maple back and sides, two bound f-holes, B/N/H binding, three-piece DX set neck, 22-fret rosewood fingerboard with Artcore dot inlay, three-per-side tuners, tune-o-matic bridge, trapeze tailpiece, two humbucker pickups, two knobs, three-way switch, chrome hardware, Dark Violin Sunburst finish, mfg. 2006 only. |
| AXF74 | | - ES-125 style body, maple top/back/sides, two f-holes, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, trapeze tailpiece, cream pickguard, two humbucker pickups, two knobs, three-way switch, chrome hardware, Pale Blue finish, mfg. 2004 only. |
| FTM60 | | - offset single cutaway semi-acoustic Talman style body, maple top/back/sides, single f-hole, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, sparkle pickguard, two humbucker pickups, two knobs, three-way switch, chrome hardware, Turquoise finish, mfg. 2004 only. |

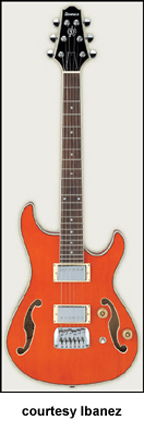

| FWD60 | | - offset double cutaway thin hollow body archtop RG style, maple top/back/sides, two f-holes, body binding, three-piece maple/mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, two humbucker pickups, two knobs, three-way switch, chrome hardware, available in Trans. Orange finish, mfg. 2005-06. |
| TM71 | | - Talman-style hollow maple body, bound top and back, single bound f-hole, Artcore set maple neck, black headstock (with Talman logo) and three-per-side tuners, ART1 tune-o-matic-style bridge, stop tailpiece, two covered humbucker pickups, four knobs (two v, two tone), three-way switch, available in Black, Jewel Blue Top, or Silver Top, mfg. 2002-03. |
| TM71T | | - similar to the TM71, except has a Bigsby-style Vintage Vibrato tailpiece, available in Jewel Blue Top finish, mfg. 2002-03. |
| TXD71 | | - offset single cutaway semi-acoustic Talman style body, maple top/back/sides, single f-hole, body binding, mahogany neck, 22-fret rosewood fingerboard with dot inlay, three-per-side tuners, fixed bridge, two humbucker pickups, two knobs, three-way switch, chrome hardware, Black finish, mfg. 2004 only. |
|
|
