 IBANEZ | | ELECTRIC BASS: SOUNDGEAR (SR) SERIES | | Soundgear Series basses were introduced in 1987, and feature the SD GR by Ibanez logo on their headstocks. In 1998, Natural and Jewel Blue finishes were introduced; Blue Night and Metallic Green finishes were discontinued. | | SR05 FIVE-STRING | | - offset double cutaway light ash body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with dot inlay, matching headstock with 3/2-per-side tuners, HB-5 bridge, two Lo-Z combination pickups (one straight, one angled), four knobs, black hardware, available in Fountain Red or Jewel Blue finish, mfg. 1988-89. |
| SR300 FIRST VERSION | | - sleek offset double cutaway agathis body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, standard fixed bridge, one P-style and one J-style Ibanez DX pickups, three knobs, chrome hardware, available in Black, Blue Night, Candy Apple, Jewel Blue, Metallic Green, Natural, or Red finish, mfg. 1996-97. |
| SR300L Left-Handed First Version | | - similar to the SR300 First Version, except in left-handed configuration, available in Black finish, mfg. 1996-97. |

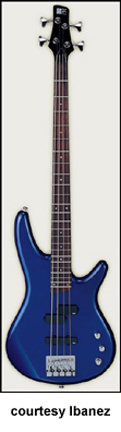

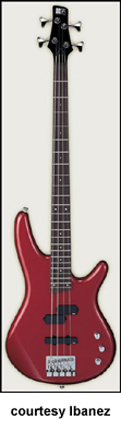

| SR300DX | | - similar to the SR300 First Version, except has Phat bass boost circuitry, available in Black, Candy Apple, Jewel Blue, Lipstick Red, Metallic Green, or Sangria finish, mfg. 1997-2007. |

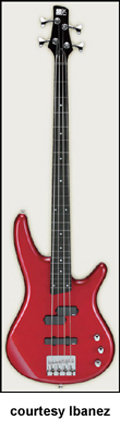

| SR300DXF Fretless | | - similar to the SR300DX, except has a fretless fingerboard with fret market lines, available in Black (2004-05) or Candy Apple finish, mfg. 2004-07. |

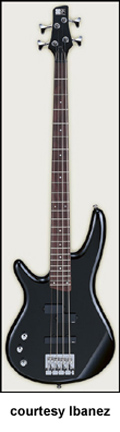

| SR300DXL Left-Handed | | - similar to the SR300, except in left-handed configuration, available in Black finish, mfg. 1997-2007. |

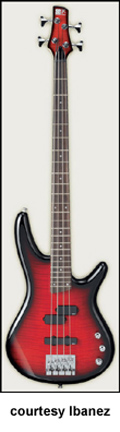

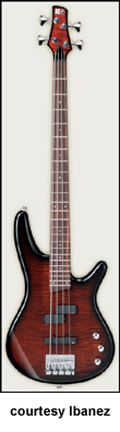

| SR300FM Flame Maple | | - similar to the SR300 First Version, except has a flame maple top, available in Dark Violin Sunburst or Trans Red Sunburst finish, mfg. 2006-07. |

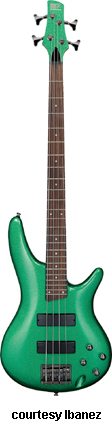

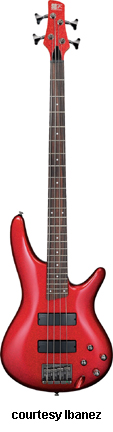

| SR300 SECOND VERSION | | - offset double cutaway agathis body, bolt-on five-piece maple/rosewood neck, 24-fret rosewood fingerboard with pearl dot inlays, matching finish headstock overlay, two-per-side tuners, B100 bridge, two Ibanez EXF, Style Sweeper 3-band active electronics, four knobs, black chrome hardware, available in Green Sparkle (new 2009), Iron Pewter, Red Sparkle (new 2009), Roadster Orange Metallic, or Starlight Blue finish, mfg. 2008-present. |

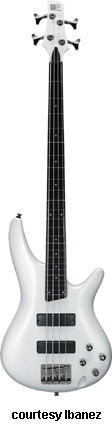

| SR300F Second Version Fretless | | - similar to the SR300 Second Version, except has a fretless ebonol fingerboard with fret lines and dot inlays, available in Pearl White finish, new 2009. |

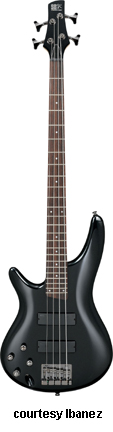

| SR300L Second Version Left-Handed | | - similar to the SR300 Second Version, except in left-handed configuration, available in Iron Pewter finish, mfg. 2008-present. |

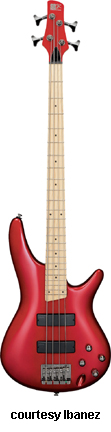

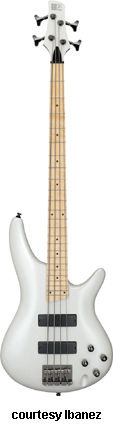

| SR300M Second Version Maple Fingerboard | | - similar to the SR300 Second Version, except has a maple fingerboard with black dot inlays, available in Candy Apple or Pearl White finish, new 2009. |
| SR305 FIVE-STRING FIRST VERSION | | - similar to the SR300 First Version, except in five-string configuration, 3/2-per-side tuners, and two Ibanez DX soapbar pickups, available in Black or Blue Night finish, mfg. 1996-97. |

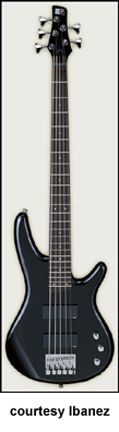

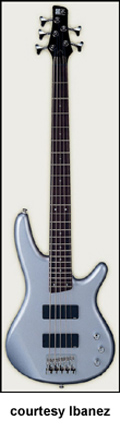

| SR305DX Five-String | | - similar to the SR305 Five-String First Version, except has Phat bass boost circuitry, available in Black, Jewel Blue, Metallic Green, Moon Shadow, or Trans. Red finish, mfg. 1997-2007. |

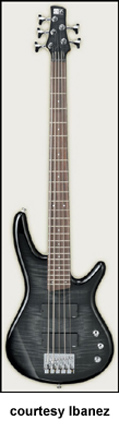

| SR305FM Five-String Flame Maple | | - similar to the SR305 Five-String First Version, except has a flame maple top, available in Trans Black Sunburst finish, mfg. 2006-07. |

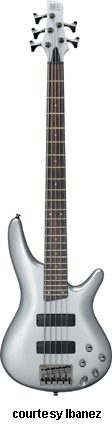

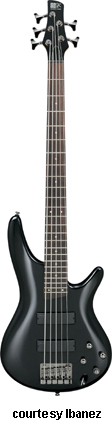

| SR305 SECOND VERSION FIVE-STRING | | - similar to the SR300 Second Version, except in five-string configuration with 3/2-per-side tuners and a B105 bridge, available in Iron Pewter or Moon Shadow finish, mfg. 2008-present. |

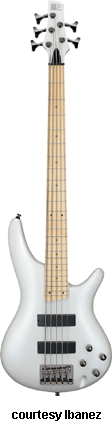

| SR305M Second Version Five-String Maple Fingerboard | | - similar to the SR305 Second Version Five-String, except has a maple fingerboard with black dot inlays, available in Pearl White finish, new 2009. |
| SR390 | | - offset double cutaway ash body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, standard fixed bridge, two IBZ DX soapbar pickups, three knobs, Phat bass boost circuitry, black hardware, available in Butterscotch or Trans. Red finish, mfg. 1999 only. |

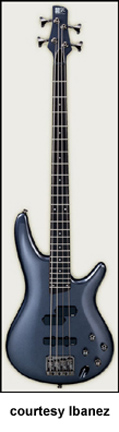

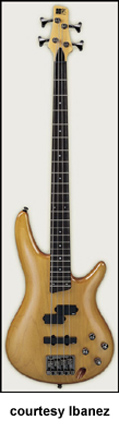

| SR400 | | - offset double cutaway soft maple body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, die-cast fixed bridge, black hardware, one P and one J-style Ibanez DX pickups, four knobs (one stacked), Sweeper electronics, available in Black (1993-2005), Candy Apple (1993 only), Crimson Red Metallic (1994 only), Gray Nickel (2003 only), Jewel Blue (1993-97), Light Amber (2003-06), Mediterranean Green (1997 only), Metallic Green (1996 only), Natural (1997-2002), Royal Blue (1998 only), Vampire Kiss (1999 only), Vintage Blue (2000-06), or White (1995 only) finish, mfg. 1993-2006. |
| SR400F Fretless | | - similar to the SR400, except has a fretless fingerboard with fret marker lines, available in Black finish, mfg. 1994-96. |
| SR400L Left-Handed | | - similar to the SR400, except in left-handed configuration, available in Black finish, mfg. 1993-95. |

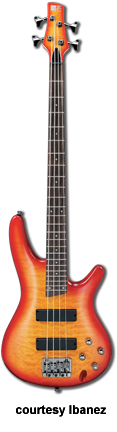

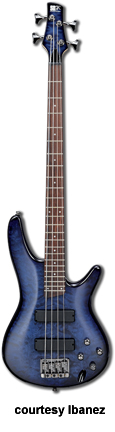

| SR400QM Quilted Maple | | - similar to the SR400, except has a quilted maple top and two Ibanez DXH soapbar pickups, available in Cherry Sunburst or Trans. Lavender Burst finish, mfg. 2007-present. |

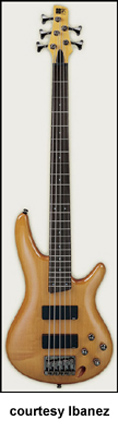

| SR405 FIVE-STRING | | - similar to SR400, except in five-string configuration, 3/2-per-side tuners, and two Ibanez DX soapbar pickups, available in Black, Jewel Blue (disc.), Light Amber, Natural (disc.), Royal Blue (disc.), or Trans. Purple (disc.) finish, mfg. 1994-2006. |

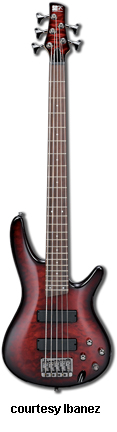

| SR405QM Five-String Quilted Maple | | - similar to the SR405 Five-String, except has a quilted maple top and two Ibanez DXH soapbar pickups, available in Charcoal Brown Burst finish, mfg. 2007-present. |
| SR406 SIX-STRING | | - similar to SR400, except in six-string configuration, three-per-side tuners, and two Ibanez DX soapbar pickups, available in Black or Natural finish, mfg. 1997-2002. |
| SR480 | | - offset double cutaway mahogany body, five-piece maple/Wenga neck, 24 medium fret rosewood fingerboard with pearl dot position markers, Die Cast 4-String bridge, one IBZ J-style and one IBZ P-style pickup, EQBIII 3-band active EQ, black hardware, available in Brown Mahogany or Stained Oil finish, mfg. 1999-2002. |
| SR485 FIVE-STRING | | - similar to the SR480, except in five-string configuration and 3/2-per-side tuners, available in Brown Mahogany or Stained Oil finish, mfg. 1999-2002. |
| SR490 | | - similar to the SR480, except has oval fingerboard inlays, available in Brown Mahogany finish, mfg. 2003 only. |
| SR495 FIVE-STRING | | - similar to the SR490, except in five-string configuration, 3/2-per-side tuners, and two J-style pickups, available in Brown Mahogany finish, mfg. 2003 only. |
| SR496 SIX-STRING | | - similar to the SR490, except in six-string configuration, three-per-side tuners, and two J-style pickups, available in Brown Mahogany finish, mfg. 2003 only. |
| SR500 FIRST VERSION | | - offset double cutaway maple body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, fixed bridge, one P-style and one J-style active Ibanez pickups, volume/treble/bass/mix controls, active electronics, black hardware, available in Atlantic Blue, Black, Emerald Green, Jewel Blue, Laser Blue, Natural, or Trans. Turquoise finish, mfg. 1993-96. |
| SR500L Left-Handed | | - similar to the SR500, except in left-handed configuration, available in Black finish, mfg. 1994 only. |

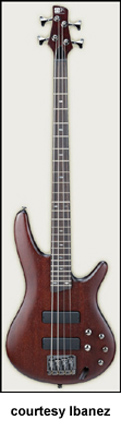

| SR500 SECOND VERSION | | - similar to the SR-500, except has a mahogany body with a five-piece wenge/bubinga neck, abalone oval inlays, Bartolini pickups, and Bartolini active electronics, available in Brown Mahogany finish, mfg. 2003-present. |
| SR500L Second Version Left-Handed | | - similar to the SR500 Second Version, except in left-handed configuration, available in Brown Mahogany finish, new 2009. |
| SR505 FIVE-STRING FIRST VERSION | | - similar to SR500, except in five-string configuration, 3/2-per-side tuners, and two J-style EMG pickups, available in Black, Natural, Trans. Red, or Trans. Turquoise finishes, mfg. 1993-96. |

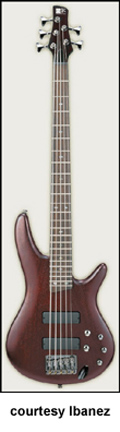

| SR505 FIVE-STRING SECOND VERSION | | - similar to the SR500 Second Version, except in five-string configuration and 3/2-per-side tuners, available in Brown Mahogany finish, mfg. 2003-present. |
| SR505L Second Version Five-String Left-Handed | | - similar to the SR505 Second Version Five-String, except in left-handed configuration, available in Brown Mahogany finish, new 2009. |
| SR506 SIX-STRING FIRST VERSION | | - similar to SR500, except in six-string configuration, three-per-side tuners, and two Ibanez ADX active humbucker pickups, Vari-Mid 3-band EQ, available in Black, Natural, or Trans. Turquoise finish, mfg. 1994-97. |
| SR506 SIX-STRING SECOND VERSION | | - similar to the SR500 Second Version, except in six-string configuration and three-per-side tuners, available in Brown Mahogany finish, mfg. 2003-present. |

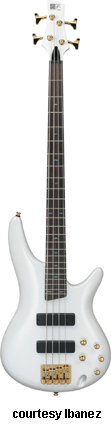

| SR530 | | - offset double cutaway mahogany body, bolt-on five-piece maple/rosewood neck, 24-fret rosewood fingerboard with abalone pearl oval inlays, matching finish headstock overlay, two-per-side tuners, Accu-Cast B20 bridge, two Bartolini MK1 pickups, Bartolini MK1 3-band active electronics, five knobs, gold hardware, available in Iron Pewter or Pearl White finish, mfg. 2008-present. |

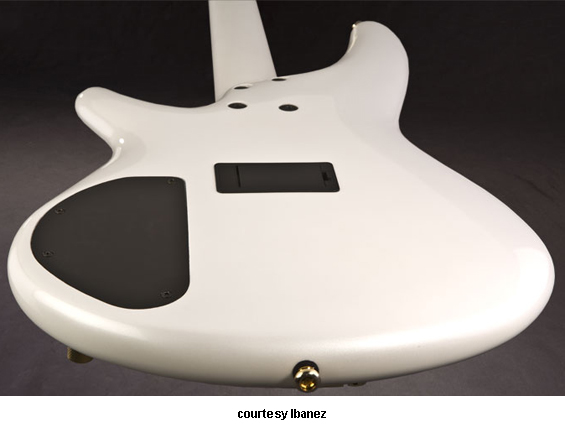

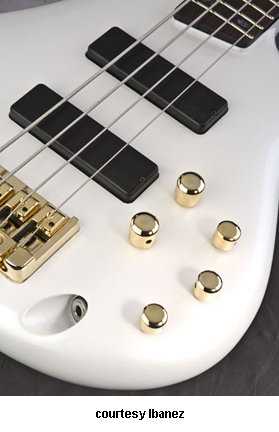

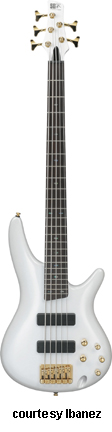

| SR535 FIVE-STRING | | - similar to the SR530, except in five-string configuration with 3/2-per-side tuners and an Accu-Cast B25 bridge, available in Pearl White finish, mfg. 2008-present. |
| SR590 | | - similar to SR500 First Version, except has gold hardware, available in Natural or Trans. Turquoise finish, mfg. 1994-95. |

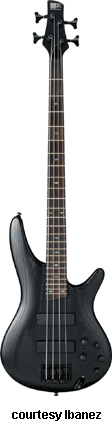

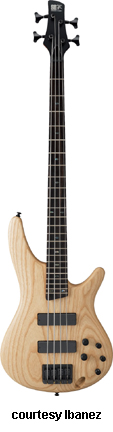

| SR600 | | - offset double cutaway light ash body, bolt-on five-piece jatoba/bubinga neck, 24-fret rosewood fingerboard with abalone pearl oval inlays, black headstock overlay, two-per-side tuners, Accu-Cast B20 bridge, two Bartolini MK1 pickups, Bartolini MK1 3-band active electronics, five knobs (v, balance, t, m, b), black chrome hardware, available in Black Flat or Natural Flat finish, 34 in. scale, new 2009. |

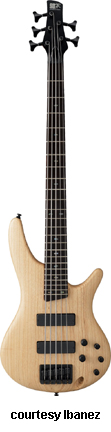

| SR605 Five-String | | - similar to the SR600, except in five-string configuration with 3/2-per-side tuners and an Accu-Cast B25 bridge, available in Natural Flat finish, new 2009. |
| SR640 | | - offset double cutaway basswood body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with dot inlay, two-per-side tuners, die-cast standard bridge, one J-style and one P-style Ibanez pickups, four knobs, EQB II two-band electronics, black hardware, available in Black or Titanium Ice finish, mfg. 2000-01. |
| SR645 FIVE-STRING | | - similar to the SR640, except in five-string configuration, 3/2-per-side tuners, and two J-style Ibanez pickups, available in Black or Gray Nickel finish, mfg. 2000-01. |

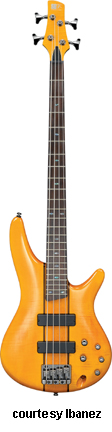

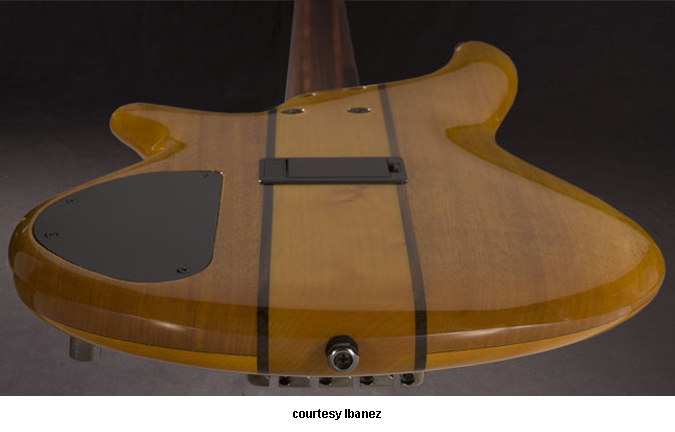

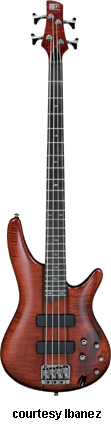

| SR700 | | - offset double cutaway mahogany body with a center strip that looks like a NTB, figured maple top, bolt-on five-piece Jatoba/bubinga neck, 24-fret rosewood fingerboard with abalone pearl oval inlays, figured maple matching finish headstock overlay, two-per-side tuners, Accu-Cast B20 bridge, two Bartolini MK1 pickups, Bartolini MK1 3-band active electronics, five knobs, black chrome hardware, available in Amber or Charcoal Brown finish, mfg. 2008-present. |

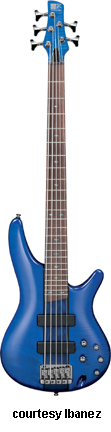

| SR705 FIVE-STRING | | - similar to the SR700, except in five-string configuration with 3/2-per-side tuners and an Accu-Cast B25 bridge, available in Blue Moon finish, mfg. 2008-present. |
| SR706 SIX-STRING | | - similar to the SR700, except in six-string configuration with three-per-side tuners and a B106 bridge, available in Trans. Black finish, mfg. 2008-present. |

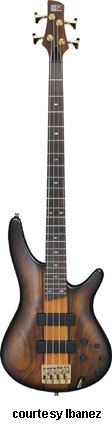

| SR750 | | - offset double cutaway mahogany body with a center strip that looks like a NTB, walnut top, bolt-on five-piece Jatoba/bubinga neck, 24-fret rosewood fingerboard with abalone pearl oval inlays, walnut matching finish headstock overlay with "SDGR" logo, two-per-side tuners, Accu-Cast B20 bridge, two Bartolini MK1 pickups, Bartolini MK1 3-band active electronics, five knobs (v, balance, t, m, b), gold hardware, available in Brown Sunburst Flat finish, mfg. summer 2008-present. |

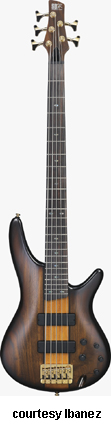

| SR755 FIVE-STRING | | - similar to the SR750, except in five-string configuration with 3/2-per-side tuners and an Accu-Cast B25 bridge, available in Brown Sunburst Flat finish, mfg. summer 2008-present. |
| SR800 | | - offset double cutaway basswood body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, AccuCast B20 (formerly B IV) bridge, one J-style and one P-style Ibanez AFR pickups, volume/blend/Vari-mid 3-band EQ controls, black hardware, available in Atlantic Blue (1998 only), Black (1991-99), Candy Apple (1992 only), Cayman Green (1994 only), Cherry Fudge (1998-99), Dark Metallic Green, Emerald Green (1993 only), Grape Ice (1991 only), Gray Nickel (1999-2003), Jade Metallic (1995-97), Jewel Blue (1991-93), Metallic Blue (1995, 1997-98), Royal Blue (1994 only), Ruby Red (1991 only) finishes, mfg. 1991-2003. |
| SR800A Ash | | - similar to SR800, except has ash body, available in Amber, Butterscotch, Trans. Black, or Trans. Cherry finish, mfg. 1998-99. |
| SR800F Fretless | | - similar to the SR800, except has a fretless fingerboard with fret line markers, available in Black finish, mfg. 1991-92. |
| SR800L Left-Handed | | - similar to the SR800, except in left-handed configuration, available in Black finish, mfg. 1991-93. |
| SR800LE | | - similar to the SR800, except has one Lo-Z J-style and one P-style Ibanez pickups, was the first SR800 model, available in Black, Lipstick Red, or Violet Pearl finish, mfg. 1988-1990. |
| SR800LEL Left-Handed | | - similar to the SR800LE, except in left-handed configuration, available in Black or Lipstick Red finish, mfg. 1990 only. |
| SR885 FIVE-STRING | | - similar to SR800, except in five-string configuration, 3/2-per-side tuners, AccuCast B25 bridge, and two Ibanez ADX active pickups, available in Atlantic Blue (1998 only), Black, Candy Apple (1992 only), Cayman Green (1994 only), Gray Nickel (1999 only), Jade Metallic (1995-96), Laser Blue (1991-93), Metallic Blue (1997 only), Royal Blue (1994 only), Ruby Red (1991 only) finishes, mfg. 1991-2003. |
| SR885LE Five-String | | - similar to the SR885, except has two Lo-Z J-style Ibanez pickups (one straight, one angled), was the first SR885 model, available in Black or Sunset Red finish, mfg. 1989-1990. |
| SR886 SIX-STRING | | - similar to SR885, except in six-string configuration and three-per-side tuners, available in Black, Candy Apple, Laser Blue, or Lipstick Red finish, mfg. 1992-93. |
| SR890 | | - offset double cutaway ash body, bolt-on three-piece maple neck, 24-fret rosewood fingerboard with pearl dot inlay, two-per-side tuners, fixed bridge, P/J-style Ibanez active pickups, volume/treble/2 mid/bass/mix controls, gold hardware, available in Natural, Trans. Cherry, or Trans. Turquoise finish, mfg. 1992-93. |
| SR895 FIVE-STRING | | - similar to SR890, except in five-string configuration and 3/2-per-side tuners, mfg. 1992-93. |
| SR900 FIRST VERSION | | - similar to the SR890, except has an AccuCast-B bridge, one J-style and one P-style active Ibanez pickups, four knobs, available in Emerald Green or Purple Neon finish, mfg. 1992 only. |

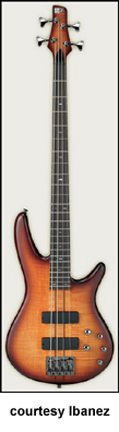

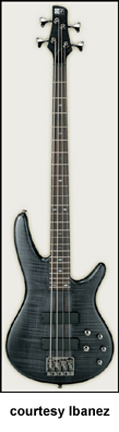

| SR900 SECOND VERSION | | - offset double cutaway figured maple body, five-piece maple/bubinga neck-thru body, 24-fret rosewood fingerboard with abalone oval inlays, two-per-side tuners, Accu-Cast B20 bridge, two Bartolini pickups, five knobs, Bartolini active electronics, black chrome hardware, available in Antique Violin Flat, Trans. Black (2003-06), or Trans. Flat Black finish, mfg. 2003-07. |

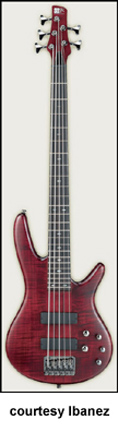

| SR905 FIVE-STRING | | - similar to the SR900, except in five-string configuration and 3/2-per-side tuners, available in Charcoal Brown Flat finish, mfg. 2003-07. |
| SR950 | | - similar to SR900, except has ebony fingerboard with abalone oval inlay and gold hardware, available in Trans. Cherry or Trans. Turquoise finish, mfg. 1992 only. |
| SR990QS QUITED SAPELE | | - offset double cutaway mahogany body, quilted sapele top, bolt-on five-piece bubinga/wenge neck, 24-fret wenge fingerboard with abalone oval inlay, two-per-side tuners, AccuCast B20 bridge, Ibanez P/J-style AFR pickups, volume/blend/Vari-mid 3-band EQ controls, chrome hardware, available in Stained Oil finish, mfg. 1998-99. |
| SR1000/SR1000E | | - offset double cutaway light ash body, bolt-on three-piece maple neck, 24-fret ebony fingerboard with dot inlay, matching headstock with two-per-side tuners, omni-adjust bridge, one J-style and one P-style USA Ibanez (1987-89) or EMG (1990-91) pickups, three knobs, mini-switch, black hardware, available in Black, Dark Blue, Fountain Blue, Jewel Red, Laser Blue, or Purple Neon finish, mfg. 1987-1991. |
| SR1010 | | - offset double cutaway mahogany body, bolt-on five-piece bubinga/wenge neck, 24-fret wenge fingerboard with abalone oval inlay, two-per-side tuners, AccuCast B20 (previously B IV) bridge, one J-style and one P-style Ibanez AFR (1998) or SFR (1997) pickups, volume/blend/Vari-mid 3-band EQ controls, active electronics, chrome hardware, available in Stained Oil finish, mfg. 1997-98. |
| SR1015 FIVE-STRING | | - similar to SR1010, except in five-string configuration, 3/2-per-side tuners, AccuCast B25 bridge, and two Ibanez ADX humbucker pickups, mfg. 1997-98. |
| SR1016 SIX-STRING | | - similar to SR1300, except in six-string configuration, three-per-side tuners, die-cast bridge, two Ibanez ADX humbucker pickups, and black hardware, mfg. 1997-98. |
| SR1200 | | - offset double cutaway mahogany body, figured maple top, through body 5-piece bubinga/wenge neck, 24-fret rosewood fingerboard with abalone oval inlay, two-per-side tuners, die-cast bridge, Ibanez P/J-style AFR pickups, volume/blend/Vari-mid 3-band EQ controls, black hardware, Iavailable in Butterscotch Trans, Natural, Trans. Black, or Trans. Turquoise finish, mfg. 1994-97. |
| SR1205 FIVE-STRING | | - similar to SR1200, except in five-string configuration, 3/2-per-side tuners, and two Ibanez ADX humbucker pickups, mfg. 1994-97. |
| SR1206 SIX-STRING | | - similar to SR1200, except in six-string configuration, three-per-side tuners, and two Ibanez ADX humbucker pickups, mfg. 1994-96. |
| SR1300 | | - offset double cutaway padauk body, bolt-on five-piece bubinga/wenge neck, 24-fret wenge fingerboard with pearl dot inlay, two-per-side tuners, fixed bridge, one J-style and one P-style Ibanez pickups, volume/treble/2 mid/bass/mix controls, cosmo black hardware, available in Oil finish, mfg. 1993-96. |
| SR1305 FIVE-STRING | | - similar to SR1300, except in five-string configuration, 3/2-per-side tuners, and two Ibanez active humbucker pickups, mfg. 1993-96. |
| SR1306 SIX-STRING | | - similar to SR1300, except in six-string configuration, three-per-side tuners, and two Ibanez active humbucker pickups, mfg. 1993-96. |
| SR1500 | | - offset double cutaway bubinga or padauk body, bubinga/wenge five-piece neck, 22-fret ebony fingerboard with pearl dot inlay, fixed bridge, two-per-side tuners, one J-style and one P-style EMG pickups, four knobs, jack on face of guitar, black hardware, available in Natural finish, mfg. 1991-92. |
| SR2000 | | - offset double cutaway maple body, through body five-piece maple/walnut neck, 24-fret wenge fingerboard with abalone oval inlay, two-per-side tuners, fixed bridge, one J-style and one P-style Ibanez pickups, four black knobs (two stacked), gold hardware, available in Oil or Trans. Purple finishes, mfg. 1992-93. |
| SR2005 FIVE-STRING | | - similar to SR2000, except in five-string configuration, 3/2-per-side tuners, and two J-style Ibanez pickups, mfg. 1992-93. |
| SR3000/SR3000E | | - offset double cutaway mahogany body, five-piece wenge/bubinga neck, 24-fret wenge fingerboard with abalone oval inlay, 2 IBZ SFR or Batolini pickups, Mono-Rail II bridge with D-tuner, active EQ, black hardware, available in Stained Oil finish, mfg. 1999-2004. |
| SR3005/SR3005E FIVE-STRING | | - similar to the SR3000 except is in five string configuration and 3/2-per-side tuners, mfg. 1999-2004. |
| SR3006/SR3006E SIX-STRING | | - similar to the SR3000 except is in six string configuration and three-per-side tuners, mfg. 1999-2004. |
| SR5000SR PRESTIGE | | - offset double cutaway mahogany/walnut/mahogany body, bolt-on five-piece bubinga/wenge neck, 24-fret wenge fingerboard with abalone oval inlay, Monorail bridge pieces with D-Tuner, two-per-side tuners, gold hardware, one J-style and one P-style Ibanez AFR pickups, volume/blend/Vari-mid 3-band EQ controls, available in Mahogany finish, mfg. 1996-98. |
| SR5005SR FIVE-STRING PRESTIGE | | - similar to SR5000, except in five-string configuration, 3/2-per-side tuners, and two Ibanez ADX humbucker pickups, mfg. 1996-98. |
|
|
