ELECTRIC BASS: MISC.

Early Guild basses have a specially designed Guild single coil pickup made by Hagstrom in Sweden that is often mistaken for a humbucker. Some of these basses have an extra switch that activated a passive circuit and eliminated the hum associated with single coil pickups. This feature makes the basses more desirable and collectible.

ASHBORY

- small curved teardrop body, neck-through design, 4-on-a-side tuners, chrome hardware, piezo pickup under bridge, volume/tone controls, mfg. 1986-88.

B-301

- offset double cutaway mahogany body, black laminated pickguard, mahogany neck, 20-fret rosewood fingerboard with pearl dot inlay, fixed bridge, blackface peghead with pearl Chesterfield/logo inlay, 2-per-side tuners, chrome hardware, single coil pickup, volume/tone controls, available in Black, Natural, White, or Red finishes, mfg. 1977-1981.

B-301A

- similar to B-301, except instrument featured an ash body and maple neck, mfg. circa 1979-1981.

B-302

- similar to B-301, except has 2 single coil pickups, 2 volume/2 tone controls, 3-position switch, mfg. 1977-1981.

B-302A

- similar to B-302, except instrument featured an ash body and maple neck, mfg. circa 1979-1981.

B-401

- rounded double cutaway body, set neck, 1 pickup, mfg. 1980-81.

B-402

- similar to the B-401, except has 2 pickups, mfg. 1980-81.

JET STAR BASS

- offset double cutaway companion bass to the S-200 Thunderbird, S-100 Polara, and S-50 Jet Star guitars. It came with a Thunderbird style headstock with 2-per-side tuners until 1966 when it changed to 4 0n 1 side tuners. From 1964-1965 it had a Hagstrom style single col pickup, from 1966 to 1970 it came with Guild Mickey Mouse bass pickups, mfg. 1964-1970

JS BASS I

- offset double cutaway mahogany body/neck, 21-fret rosewood fingerboard with pearl dot inlay, fixed bridge, blackface peghead with pearl Chesterfield/logo inlay, 2-per-side tuners, chrome hardware, humbucker pickup, volume/tone controls, available in Black, Natural and Sunburst finishes, mfg. 1970-78.

JS Bass I LS

- similar to JS Bass I, except has long scale length, mfg. 1976-78.

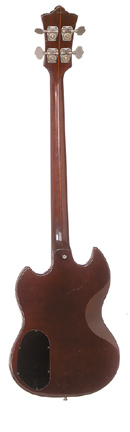

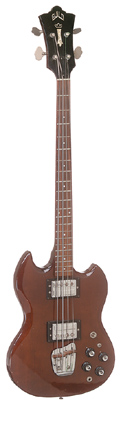

JS BASS II

- similar to JS Bass I, except has 2 humbucker pickups, 2 volume/2 tone controls, 3-position switch, mfg. 1970-78.

JS Bass II LS

- similar to JS Bass I, except has long scale length, 2 humbucker pickups, 2 volume/2 tone controls, 3-position switch, mfg. 1976-78.

M-85 I

- similar to the JS Bass I, except has a carved top, single cutaway semi-solid design, rosewood fingerboard with dot inlays, 30.75 in. scale, 1 Hagstrom single coil pickup, mfg. 1970-1980.

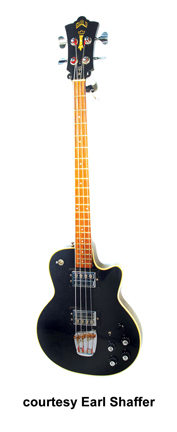

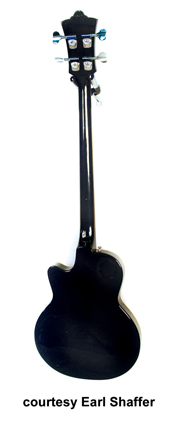

M-85 II

- similar to the M-85 I, except has 2 pickups, 2 volume/2 tone controls, mfg. 1970-1980.

ST 4

- offset double cutaway asymmetrical poplar body, bolt-on maple neck, 22-fret rosewood fingerboard with pearl dot inlay, fixed bridge, 4-on-a-side tuners, black hardware, P/J-style pickups, 2 volume/tone controls, available in Black, Natural, or White finishes, disc. 1994.

ST 5

- similar to ST 4, except has 5 strings, 4/1 per side tuners, disc. 1994.

X-701

- X shaped body with four offset corners, 2-per-side tuners, 21-fret fingerboard with dot inlay, single pickup, black pickguard, various metallic colors, mfg. 1982-84

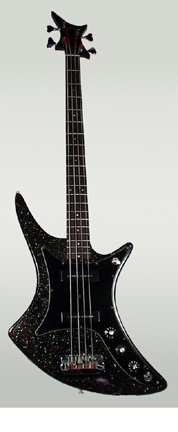

X-702

- similar to the X-701 except has two pickups, mfg. 1982-84.
