| ECLIPSE CUSTOM (FIRST VERSION) | | - single cutaway bound mahogany body, bolt-on maple neck, 22-fret ebony fingerboard with pearl dot inlay, strings though bridge, blackface peghead with screened logo, 6-on-a-side tuners, black hardware, 2 exposed humbucker pickups, volume/tone controls, 3-position switch, available in Baby Blue, Black, Bubble Gum Pink, Candy Apple Blue, Fiesta Red, Metallic Blue, Metallic Red, Midnight Black, Mint Green, Snow White, Trans. Cherry Red, or Trans. Blue finishes, mfg. 1986-87. |
| Eclipse Custom (Second Version) | | - similar to the Eclipse Custom (First Version), except has through-body maple neck, bound fingerboard, offset pearl block fingerboard inlay, redesigned bound peghead, chrome hardware, available in Cherry Sunburst, Pearl Gold, Pearl Pink, Pearl White, or Turquoise finishes, mfg. 1987-88. |
| Eclipse Custom T | | - similar to Eclipse Custom (Second Edition), except has double locking tremolo, available in Black, Cherry Sunburst, Pearl Gold, Pearl Pink, Pearl White, or Turquoise finishes, mfg. 1987-88. |
| Eclipse Deluxe | | - similar to Eclipse Custom, except has standard vibrato, mfg. 1986-88. |
| ECLIPSE (SOLID BODY) | | - single cutaway mahogany body, bolt-on maple neck, 24-fret bound rosewood fingerboard with pearl dot inlay (logo block inlay at 12th fret), tune-o-matic bridge/stop tailpiece, three-per-side tuners, bound headstock, chrome hardware, two ESP LH-200 humbucker pickups with nickel covers, volume/2-Tone controls, three-position switch, available in Black, Gunmetal Blue, Metallic Gold, or Pearl White finish, mfg. 1995-2000. |
| Eclipse Arch Top | | - similar to the Eclipse Solid Body, except features a bound arched top semi-hollow mahogany body, cat's-eye f-hole, 22-fret bound fingerboard, tune-o-matic bridge/trapeze tailpiece, available in Black, Metallic Gold, Pearl White, or Turquoise finishes, mfg. 1996-2000. |
| Eclipse Semi-Acoustic (Steel String) | | - similar to the Eclipse Arch Top, except has rosewood bridge, bound maple top, piezo pickup, volume/tone controls, on-board active EQ system, available in Honey Sunburst, See-Through Black, See-Through Blue, See-Through Green, See-Through Purple, or See-Through Red finishes, mfg. 1996-2000. |
| Eclipse Semi-Acoustic (Nylon String) | | - similar to the steel string semi-acoustic except has nylon strings, spruce top, and a slotted headstock, available in Natural finish, disc. 1999. |
| ECLIPSE CUSTOM (USA CUSTOM SERIES) | | - single cutaway mahogany body, bound figured maple top, bolt-on maple neck, 24-fret bound rosewood fingerboard with mother-of-pearl dot inlay (logo block inlay at 12th fret), tune-o-matic bridge/stop tailpiece, 3-per-side Sperzel locking tuners, bound headstock, black hardware, 2 EMG-81 humbucker pickups with nickel covers, 2 volume/tone controls, 3-position switch, available in Amber, Natural Satin, See-Through Blue, See-Through Green, See-Through Purple, or See-Through Red finishes, mfg. 1998-2000. |
| ECLIPSE CUSTOM (ESP CUSTOM SERIES) | | - single cutaway mahogany body with quilted maple top, three-piece maple neck, 24-fret ebony fingerboard with flag inlays and 12th fret ESP logo, two EMG-81 humbucker pickups, three-per-side tuners, TonePros System II locking bridge, white with abalone neck binding, natural body binding, three black knobs, switch, black hardware, available in See-Through Black or See-Through Black Cherry finish, mfg. 2003-present. |
 |

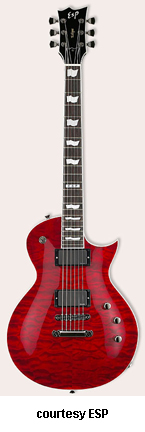

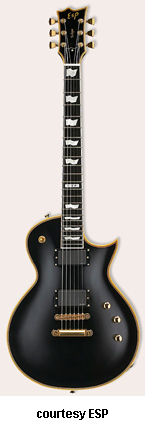

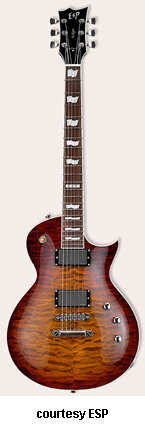

| ECLIPSE II (STANDARD SERIES) | | - single cutaway mahogany body, quilted maple top (Amber Cherry Sunburst, See-Through Black Cherry, and Vintage Honey Burst finish only), mahogany neck, 22-fret ebony (Vintage Black, Snow White, and Vintage White finish) or rosewood fingerboard (Amber Cherry Sunburst, See-Through Black Cherry, and Vintage Honey Burst finish only), with flag inlays and 12th fret ESP logo, two EMG-81 or two Duncan Humbucker pickups, three-per-side tuners, Gotoh tune-o-matic bridge, white B/N/H binding, four knobs, switch, black, chrome, or gold (Vintage Black finish only) hardware, available in Amber Cherry Sunburst, See-Through Black Cherry, Snow White, Vintage Black, Vintage Honey Burst (disc.), or Vintage White (disc.) finish, 24.75 in. scale, mfg. 2004-present. |

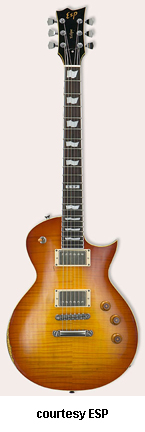

| Eclipse II Distressed (Standard Series) | | - similar to the Eclipse II, except has a flame maple top and a distressed-finished body, available in Amber Honey Burst finish, new 2008. |
|
