 YAMAHA | | ACOUSTIC ELECTRIC: COMPASS SERIES | | Yamaha introduced their Compass (CPX) Series in 1998. The Compass Series featured a single smooth cutaway body that was a bit smaller than a regular full-sized jumbo acoustic and Yamaha used their two-way piezo/mic pickup electronics. The CPX 15 handcrafted series came in two regular versions (CPX 15/CPX 15A and the CPX 15CM) as well as four guitars named after the four points of the compass. Each direction represented a certain area of the world and each guitar had unique appointments in body woods, rosettes, and fingerboard inlays. In 2006, Yamaha introduced an entirely new line of Compass models that had three digit model numbers. | | CPX 5 | | - single smooth cutaway jumbo Compass-style body, spruce top, nato back and sides, round soundhole with multi rings rosette, three-ply body binding, nato neck, 14/20-fret rosewood fingerboard with pearl dot inlays, matching finish headstock overlay with logo and Compass inlays, three-per-side chrome tuners, rosewood bridge, no pickguard, System 39 one-way piezo bridge pickup, three-band EQ, volume, AMF, and mid-shape button controls, available in Black, Yellow Natural, Trans. Blue Burst, or Violin Sunburst finish, 25.625 in. scale, mfg. 1999-2006. |
| CPX 5S | | - similar to the CPX 5, except has a solid spruce top, available in Cherry Sunburst or Tropical Marine Blue finish, mfg. 2003-06. |
| CPX 7 | | - single smooth cutaway jumbo Compass-style body, spruce top, mahogany back and sides, round soundhole with decorative color rosette, three-ply body binding, mahogany neck, 14/20-fret rosewood fingerboard with pearl dot and 12th fret offset triangle inlays, wood headstock overlay with logo and Compass inlays, three-per-side chrome tuners, rosewood bridge with three pearl dots, clear pickguard, System 39 one-way piezo bridge pickup, three-band EQ, volume, AMF, and mid-shape button controls, available in Natural finish, 25.625 in. scale, mfg. 1998-2000. |
| CPX 8 | | - single smooth cutaway jumbo Compass-style body, solid spruce top, rosewood back and sides, round soundhole with decorative pattern rosette, five-ply body binding, nato neck, 14/20-fret bound rosewood fingerboard with pearl dot inlays, bound headstock with rosewood overlay and logo/Compass inlays, three-per-side gold tuners, rosewood bridge, clear pickguard, System 45 two-way piezo bridge/mic pickups, three-band EQ, volume, mic. volume, AMF slider, and phase button controls, available in Natural finish, 25.625 in. scale, mfg. 2000-06. |
| CPX 8M | | - similar to the CPX 8, except has a solid cedar top and mahogany back and sides, available in Natural finish, mfg. 2000-06. |

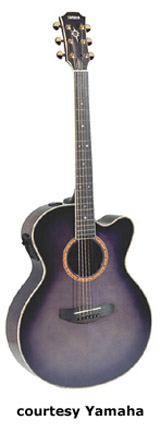

| CPX 8SY | | - similar to the CPX 8 except features white sycamore back and sides, a compass-themed rosette, and a wood pattern headstock overlay, available in four ocean colors: Dusk Sun Red, Lagoon Green, Morning Sea Violet, or Tropical Marina Blue finish, mfg. 2001-06. |
| CPX 8-12 12-String | | - similar to the CPX 8, except in 12-string configuration with six-per-side tuners, available in Natural finish, mfg. 2000-06. |
| CPX 10 | | - single smooth cutaway jumbo Compass-style body, solid spruce top, rosewood back and sides, round soundhole with decorative color rosette, five-ply body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with offset trapezoid thumbnail inlays, bound headstock with wood overlay and logo/Compass inlays, three-per-side gold tuners, ebony bridge with three pearl dots, clear pickguard, System 39 one-way piezo bridge pickup, three-band EQ, volume, AMF, and mid-shape button controls, available in Natural finish, 25.625 in. scale, mfg. 1998-2000. |
| CPX 15/CPX 15A/CPX 15II | | - single smooth cutaway jumbo Compass-style body, solid spruce top, rosewood back and sides, round soundhole with nautical flags rosette, soundhole cover included, five-ply body binding, mahogany neck, 14/20-fret bound ebony fingerboard with offset nautical flag inlays, bound headstock with rosewood overlay and logo/Compass inlays, three-per-side gold tuners, ebony bridge, clear pickguard, System 40 (1999-2000), System 41 (2001-07) two-way piezo bridge/mic electronics with three-band EQ, volume, mic. volume, mic. tone, AMF, and phase button controls, or System 59 three-way electronics with master volume, treble volume, main volume, bass volume, and three-band EQ controls (2008-present), available in Natural finish, 25.625 in. scale, mfg. 1999-present. |
| CPX-15AD Art Deco Limited Edition | | - similar to the CPX 15/CPX 15A, except has a turquoise Art Deco, and custom turquoise/abalone pearl Art Deco fingerboard inlays, available in Natural finish, mfg. 2002-03. |
| CPX 15CM | | - similar to the CPX 15/CPX 15A, except has a solid cedar top, mahogany back and sides, a multi-ring rosette with abalone pearl, and pearl dot fingerboard inlays, available in Natural finish, mfg. 2000-06. |
| CPX 15E/CPX 15EA/CPX 15II East | | - similar to the CPX 15/CPX 15A/CPX 15II, except has an Egyptian hieroglyphics theme with quilted mahogany back and sides, wood Egyptian symbols rosette, and Egyptian symbols fingerboard inlays, available in Sunburst finish, mfg. 1999-present. |
| CPX 15N/CPX 15NA/CPX 15II North | | - similar to the CPX 15/CPX 15A/CPX 15II, except has an Arctic theme with satin sycamore back and sides, midnight sun scene rosette, and whale's tail pearl fingerboard inlays, available in Snowburst finish, mfg. 1999-present. |
| CPX 15S/CPX 15SA/CPX 15II South | | - similar to the CPX 15/CPX 15A/CPX 15II, except has a tropical sea theme with white sycamore back and sides, multi-wood palm tree rosette, and MOP porposes fingerboard inlays, available in Miami Ocean Blue finish, mfg. 1999-present. |
| CPX 15W/CPX 15WA/CPX 15II West | | - similar to the CPX 15/CPX 15A/CPX 15II, except has an American West theme with walnut back and sides, interlocking longhorn design rosette, and concho belt inlays of pearl and turquoise fingerboard inlays, available in Antique Violin Sunburst finish, mfg. 1999-present. |
| CPX 50 | | - single smooth cutaway jumbo Compass-style body, solid spruce top, solid rosewood back and sides, round soundhole with nautical flags rosette, soundhole cover included, multi-ply body binding with rope pattern purfling, mahogany neck, 14/20-fret bound ebony fingerboard with offset nautical flag inlays, bound headstock with ebony overlay, rope pattern purfling, and logo/Compass inlays, three-per-side gold tuners, ebony bridge, clear pickguard, System 40 two-way piezo bridge/mic pickups, three-band EQ, volume, mic. volume, mic. tone, AMF, and phase button controls, available in Natural finish, 25.625 in. scale, mfg. 1999-2002. |
| CPX500 | | - single smooth cutaway jumbo Compass-style body, spruce top, nato or agathis back and sides, round soundhole with abalone rings rosette, three-ply body binding, nato neck, 14/20-fret bound rosewood fingerboard with pearl dot inlays, matching finish headstock overlay with logo and Compass inlays, three-per-side chrome tuners, rosewood bridge, no pickguard, System 55T one-way piezo bridge pickup, three-band EQ, volume, AMF, and tuner controls, available in Black, Dark Red Burst, Natural, or Old Violin Sunburst finish, 25.625 in. scale, mfg. 2008-present. |
| CPX500 FM | | - similar to the CPX500, except has a flame maple top, available in Old Violin Sunburst finish, new 2009. |

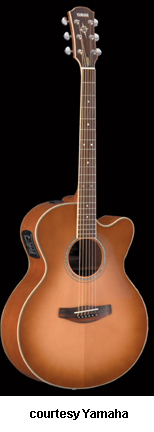

| CPX700 | | - single smooth cutaway jumbo Compass-style body, solid spruce top, nato or agathis back and sides, round soundhole with abalone rings rosette, five-ply body binding, nato neck, 14/20-fret bound rosewood fingerboard with pearl dot inlays, bound matching finish headstock overlay with logo and Compass inlays, three-per-side chrome tuners, rosewood bridge, clear pickguard, System 56T one-way piezo bridge pickup, three-band EQ, volume, AMF, and tuner controls, available in Black, Dark Red Burst, Natural, Oriental Blue Burst, or Sand Burst finish, 25.625 in. scale, mfg. summer 2006-present. |
| CPX700-12 12-String | | - similar to the CPX700, except in 12-string configuration, available in Natural finish, 25 in. scale, mfg. summer 2006-present. |

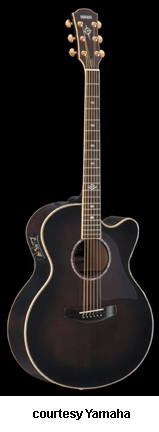

| CPX900 | | - single smooth cutaway jumbo Compass-style body, solid spruce top, flame maple back and sides, round soundhole with abalone rings rosette, five-ply body binding, nato neck, 14/20-fret bound ebony fingerboard with pearl diamond inlays, bound matching finish headstock overlay with logo and Compass inlays, three-per-side gold tuners, ebony bridge, clear pickguard, System 57T three-way piezo pickups, three-band EQ, volume, two sub pickup mix knobs, and tuner controls, available in Brown Sunburst, Mocha Black, Natural, or Ultramarine finish, 25.625 in. scale, mfg. summer 2006-present. |
|
|
