 YAMAHA | | ACOUSTIC ELECTRIC: APX SERIES | | The APX Series of acoustic/electric instruments was introduced in the late 1980s, and they were the first acoustics with cutaways to be offered by Yamaha. They also featured thinner bodies with arched backs, multiple piezo pickups, and several mono and stereo electronic configurations. The APX Series is still available from Yamaha, but the line has undergone several changes throughout the years and most models were changed all at once. The first series of APX guitars was produced until 1993 and they can be distinguished by pop-up control knobs in the side of the body. 1994 was a transition year with the introduction of the C APX Series where all models featured a C suffix. These models have an actual control plate for the electronics, but they only lasted around a year. In 1995, Yamaha introduced the A APX Series that slowly evolved to include all APX models by 1997, when an A suffix was attached to each model. In 2000, the third series of APX models was introduced. In mid-2006, the fourth series of APX models was introduced that featured a three digit number in the model name. Yamaha also offers nylon-string APX models that have overlapped most of the aforementioned series. | | APX 3/APX 3M | | - single smooth cutaway APX-style body, spruce top, nato back and sides, oval soundhole with black/brown custom rosette, top and back black body binding, nato neck, 14/22-fret rosewood fingerboard with dot inlays, nato headstock overlay with logo and custom design inlays, three-per-side chrome tuners, rosewood bridge, white bridge pins with black dots, no pickguard, System 46 one-way electronics, available in Cherry Sunburst, Natural Satin (APX3M), Tinted, or Tobacco Brown Sunburst finish, 25.5625 in. scale, mfg. 2003-06. |
| APX 4 | | - single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with multi-ring rosette, multi-ply top binding, nato neck, 22-fret rosewood fingerboard with dot inlays, black headstock overlay with logo and decorative design, three-per-side chrome tuners, rosewood bridge, no pickguard, one-way Piezo pickup and electronics, available in Black, Natural, or Violin Sunburst finish, 25.625 in. scale, mfg. 1992-94. |
| APX 4 12-String | | - similar to the APX 4, except in 12-string configuration with six-per-side tuners, available in Black or Violin Sunburst finish, mfg. 1994 only. |
| APX 4A | | - single smooth cutaway APX-style body, spruce top, nato back and sides, oval soundhole with wood pattern rosette, multi-ply body binding, nato neck, 22-fret rosewood fingerboard with pearl dot inlays, black headstock overlay with screened logo and flower design, three-per-side chrome tuners, rosewood bridge, no pickguard, piezo bridge pickup, System 34 one-way electronics with three-band EQ, available in Black, Natural, Trans. Blue Burst, or Violin Sunburst finish, 25.5 in. scale, mfg. 1995-99. |
| APX 4-12A 12-String | | - similar to the APX 4A, except in 12-string configuration with six-per-side tuners, available in Natural or Violin Sunburst finish, mfg. 1995-99. |
| APX 4ASPL Special | | - similar to the APX 4A, except has a flamed sycamore top, available in Marine BlueBurst and Tobacco Brown Sunburst finish, mfg. 1998-99. |
| APX 5A | | - single smooth cutaway APX-style body, spruce top, nato back and sides, oval soundhole with black/brown custom rosette, top and back three-ply body binding, nato neck, 14/22-fret rosewood fingerboard with dot inlays, corresponding finish headstock overlay with logo and custom design inlays, three-per-side chrome tuners, rosewood bridge, white bridge pins with black dots, no pickguard, System 46 one-way electronics, available in Natural, Sand Burst, or Trans. Blue Burst finish, 25.5625 in. scale, mfg. 2000-06. |
| APX 5A-12A 12-String | | - similar to the APX 5A, except in 12-string configuration with six-per-side tuners, available in Black or Sand Burst finish, 25 in. scale, mfg. 2000-06. |
| APX 5LA Left-Handed | | - similar to the APX 5LA, except in left-handed configuration, available in Sand Burst finish, mfg. 2000-06. |

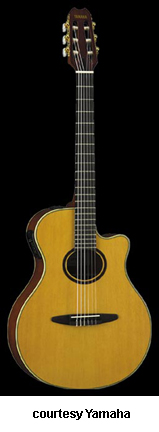

| APX 5NA | | - nylon string configuration, single smooth cutaway APX-style, spruce top, nato back and sides, oval soundhole with decorative rosette, multi-ply top and back body binding, nato neck, 22-fret rosewood fingerboard with no inlays, slotted headstock with wooden overlay, three-per-side open-style banjo gold tuners, rosewood tied bridge, System 46N one-way electronics, available in Natural finish, 25.5625 in. scale, mfg. 2000-present. |
| APX 6 | | - single round cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with wood pattern rosette, multi-ply body binding, nato neck, 24-fret extended rosewood fingerboard with pearl dot inlays, black headstock overlay with screened logo/flower design, three-per-sides chrome tuners, rosewood bridge, two-way piezo pickups, pop up volume/treble/bass/mix controls, available in Black, Cherry Sunburst, or Cream White finish, mfg. late 1980s-1993. |
| APX 6A | | - single round cutaway APX-style body, spruce top, nato back and sides, oval soundhole with wood pattern rosette, multi-ply body binding, nato neck, 24-fret extended rosewood fingerboard with pearl dot inlays, black headstock overlay with screened logo/flower design, three-per-sides gold tuners, rosewood bridge, one-way piezo pickup, three-band EQ, available in Brown Sunburst, Natural, Trans. Blue Burst, Trans. Green Burst finish, mfg. late 1995-99. |
| APX 6LA Left-Handed | | - similar to the APX 6A, except in left-handed configuration, available in Brown Sunburst finish, mfg. late 1995-99. |
| APX 6C | | - single round cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with wood pattern rosette, multi-ply body binding, nato neck, 24-fret extended rosewood fingerboard with pearl dot inlays, black headstock overlay with screened logo/flower design, three-per-sides chrome tuners, rosewood bridge, System 28A/28L one-way Piezo pickup, three-band EQ, available in Black, Tobacco Brown Sunburst, or Trans. Blue Burst finish, mfg. 1994 only. |
| APX 6CL Left-Handed | | - similar to the APX 6C, except in left-handed configuration, available in Black, Tobacco Brown Sunburst, or Trans. Blue Burst finish, mfg. 1994 only. |
| APX 6N | | - nylon-string configuration, APX non-cutaway body style, spruce top, ovankol back and sides, oval soundhole with wooden inlay rosette, multi-ply body binding, nato neck, 14/22-fret rosewood fingerboard with no inlays, slotted headstock with rosewood overlay and logo, three-per-side open-style gold tuners, rosewood tied bridge, two-way bridge/body piezo pickups, volume/treble/bass/mix controls, available in Natural finish, mfg. late 1980s-1993. |
| APX 6NA | | - nylon-string configuration, single smooth cutaway APX-style body, spruce top, nato back and sides, oval soundhole with wooden inlay rosette, multi-ply body binding, nato neck, 14/22-fret extended rosewood fingerboard with no inlays, slotted headstock with rosewood overlay and logo, three-per-side open-style gold tuners, rosewood tied bridge, one-way piezo pickups, three-brand EQ, available in Natural Satin finish, mfg. late 1995-99. |
| APX 7 | | - single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with a wooden inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, two-way bridge/body piezo pickups, pop-up volume/treble/bass/mix controls, available in Black, Blue Burst, or Light Brown Sunburst finish, mfg. late 1980s-1993. |
| APX 7A | | - single smooth cutaway folk-style thin body, solid spruce top, nato back and sides, oval soundhole with a black/abalone custom rosette, top and back five-ply body binding, nato neck, 14/22-fret bound rosewood fingerboard with dot inlays, bound headstock with black overlay with logo and custom design inlays, three-per-side gold tuners, rosewood bridge, white bridge pins with black dots, no pickguard, System 44 one-way electronics, available in Amber, Natural, Oriental Blue Burst, or Trans. Green Burst finish, 25.5625 in. scale, mfg. 2000-06. |
| APX 7C | | - single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with a wooden inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, System 28A one-way bridge piezo pickup, three-band EQ, available in Black, Brown Sunburst, or Red Blond Burst finish, mfg. 1994 only. |
| APX 7CT | | - similar to the APX 7C, except has ovangkol back and sides, available in Natural Satin finish, mfg. 1994 only. |
| APX 7CN | | - nylon string configuration, single round cutaway APX-style body, spruce top, ovankol back and sides, oval soundhole with rosette decal, multi-ply body binding, nato neck, 24-fret extended rosewood fingerboard with no inlays, slotted headstock with rosewood overlay and screened logo, three-per-side open-style gold tuners with pearloid buttons, rosewood tied bridge, System 28B one-way piezo bridge pickup, three-band EQ, available in Natural Satin finish, mfg. 1994 only. |
| APX 8 | | - single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with a wooden inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, stereo one-way bridge piezo pickup, pop-up volume/treble/bass/stereo selector controls, available in Gray Burst or Light Brown Sunburst finish, mfg. 1992-93. |
| APX 8A | | - single smooth cutaway APX-style body, spruce top, ovangkol back and sides, oval soundhole with an abalone inlay rosette cap, multi-ply top and back body binding, African mahogany neck, 22-fret bound rosewood fingerboard that follows the contour of the soundhole with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, System 29 mono two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, and AMF controls, available in Brown Sunburst or Natural Satin finish, mfg. 1995-99. |
| APX 8-12A 12-String | | - similar to the APX 8A, except in 12-string configuration with six-per-side tuners, available in Natural Satin finish, mfg. 1995-99. |
| APX 8C | | - single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with a wooden inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, System 29 mono two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, and volume controls, available in Black Burst, Brown Sunburst, or Trans. Blue Burst finish, mfg. 1994 only. |
| APX 8C-12 12-String | | - similar to the APX 8C, except in 12-string configuration with six-per-side tuners, available in Brown Sunburst or Trans. Green Burst finish, mfg. 1994 only. |
| APX 8D DEEP BODY | | - single smooth cutaway APX-style body, solid spruce top, agathis back and sides, oval soundhole with an oblong orbit-style wooden/abalone inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, two-way bridge/body piezo pickups, pop-up volume/treble/bass/mix controls, available in Black Burst or Brown Sunburst finish, 25.625 in. scale, mfg. 1993-94. |

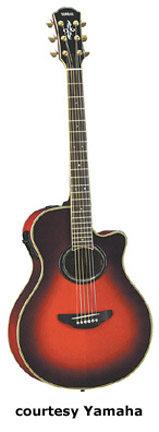

| APX 9C | | - single smooth cutaway folk-style thin body, solid spruce top, sycamore back and sides, oval soundhole with a black/abalone custom rosette, top and back seven-ply body binding, nato neck, 14/22-fret bound ebony fingerboard with dot inlays, bound headstock with black overlay with logo and custom design inlays, three-per-side gold tuners, ebony bridge, white bridge pins with black dots, no pickguard, System 45 two-way electronics with a soundhole cover and microphone capabilities, available in Black Cherry, Dusk Sun Red, or Yellow Natural Satin finish, 25.5625 in. scale, mfg. 2000-06. |
 |
| APX 9-12 12-STRING | | - 12-string configuration, single smooth cutaway APX-style body, spruce top, agathis back and sides, oval soundhole with a wooden inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl dot inlays, bound headstock with black overlay and screened logo/flower design, six-per-side chrome tuners, rosewood bridge, stereo two-way bridge/body piezo pickup, pop-up volume/treble/bass/stereo selector controls, available in Black or Light Brown Sunburst finish, mfg. late 1980s-1993. |
| APX 9NA | | - nylon string configuration, single smooth cutaway, solid cedar top, rosewood back and sides, oval soundhole with decorative rosette, multi-ply top and back body binding, nato neck, 22-fret ebony fingerboard with no inlays, slotted headstock with wooden overlay, three-per-side open-style banjo gold tuners, ebony tied bridge, System 46N one-way electronics, available in Natural finish, 25.5625 in. scale, mfg. 2000-06. |
| APX 10 | | - single smooth cutaway APX-style body, spruce top with scalloped bracing, sycamore back and sides, oval soundhole with abalone inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound ebony fingerboard with pearl diamond inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, ebony bridge, stereo two-way bridge/body piezo pickups, pop-up volume/treble/bass/stereo selector controls, available in Antique Satin Sunburst or Burgund Red finish, mfg. late 1980s-1993. |
| APX 10A | | - single smooth cutaway APX-style body, solid spruce top, sycamore back and sides, oval soundhole with abalone inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl diamond inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, System 29 mono two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, and AMF controls, available in Black Cherry or Yellow Natural Satin finish, 25.625 in. scale, mfg. 1997-99. |
| APX 10LA Left-Handed | | - similar to the APX 10A, except in left-handed configuration, available in Black Cherry or Natural Satin finish, mfg. 1997-99. |
| APX 10C | | - single smooth cutaway APX-style body, spruce top, sycamore back and sides, oval soundhole with abalone inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl diamond inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, System 30 stereo two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, AMF, and stereo switch controls, available in Antique Brown Sunburst, Antique Satin Sunburst, or Black Burst finish, 25.625 in. scale, mfg. 1994-96. |
| APX 10CL Left-Handed | | - similar to the APX 10C, except in left-handed configuration, available in Black Burst finish, mfg. 1994-96. |
| APX 10CT | | - similar to the APX 10C, except has Indian rosewood back and sides, available in Natural Satin finish, mfg. 1994-96. |
| APX 10CN | | - nylon string configuration, single smooth cutaway APX-style body, solid cedar top, Indian rosewood back and sides, oval soundhole with wooden/rope pattern rosette, multi-ply body binding, African mahogany neck, 24-fret extended ebony fingerboard, slotted headstock with rosewood overlay and logo, three-per-side open-style gold tuners with pearloid buttons, Indian rosewood bridge, System 30 stereo two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, AMF, and stereo switch controls, available in Natural Satin finish, mfg. 1994-96. |
| APX 10D DEEP BODY | | - single smooth cutaway APX-style body, solid spruce top, sycamore back and sides, oval soundhole with an oblong orbit-style wooden/abalone inlay rosette cap, multi-ply body binding, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl diamond inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, rosewood bridge, two-way bridge/body piezo pickups, pop-up volume/treble/bass/mix/stereo selector controls, available in Black Burst or Light Brown Sunburst finish, 25.625 in. scale, mfg. 1993-94. |
| APX 10N | | - nylon string configuration, single smooth cutaway APX-style body, spruce top, Indian rosewood back and sides, oval soundhole with wooden/rope pattern rosette, multi-ply body binding, African mahogany neck, 24-fret extended ebony fingerboard, slotted headstock with rosewood overlay and logo, three-per-side open-style gold tuners with pearloid buttons, Brazilian rosewood bridge, stereo two-way bridge/body piezo pickups, pop-up volume/treble/bass/mix/stereo switch controls, available in Natural finish, mfg. late 1980s-1993. |
| APX 10NA | | - nylon string configuration, single smooth cutaway APX-style body, solid cedar top, rosewood back and sides, oval soundhole with wooden/rope pattern rosette, multi-ply body binding, African mahogany neck, 24-fret extended ebony fingerboard, slotted headstock with rosewood overlay and logo, three-per-side open-style gold tuners with pearloid buttons, Indian rosewood bridge, System 29 two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, and AMF controls, available in Natural Satin finish, 25.5625 in. scale, mfg. 1997-99. |
| APX 20 | | - single smooth cutaway APX-style body, solid spruce top with scalloped bracing, sycamore back and sides, oval soundhole with abalone inlay rosette cap, abalone body binding, African mahogany neck, 24-fret extended bound ebony fingerboard with abalone pearl large triangular inlays, bound headstock with rosewood overlay and screened logo/flower design, three-per-side gold tuners, ebony bridge, stereo two-way bridge/body piezo pickups, pop-up volume/treble/bass/stereo selector controls, available in Cream White or Light Brown Sunburst finish, mfg. late 1980s-1993. |
| APX 20C | | - single smooth cutaway APX-style body, solid spruce top, flame maple back and sides, oval soundhole with abalone inlay rosette cap, single-ply binding with abalone purfling, African mahogany neck, 24-fret extended bound ebony fingerboard with abalone pearl large triangular inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, ebony bridge, System 30C stereo two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, mix, and stereo switch controls, available in Antique Brown Sunburst or Yellow Natural Satin finish, mfg. 1994-96. |
| APX 20D DEEP BODY | | - single smooth cutaway APX-style body, solid spruce top, sycamore back and sides, oval soundhole with an oblong orbit-style wooden/abalone inlay rosette cap, abalone body binding, African mahogany neck, 24-fret extended bound ebony fingerboard with pearl decorative inlays, bound headstock with black overlay and screened logo/flower design, three-per-side gold tuners, ebony bridge, two-way bridge/body piezo pickups, pop-up volume/treble/bass/mix/stereo selector controls, available in Antique Satin Sunburst or Cream White finish, 25.625 in. scale, mfg. 1993-94. |
| APX 97LTD | | - single smooth cutaway APX-style body, spruce top, sycamore back and sides, oval soundhole with black/abalone inlay rosette cap, single-ply body binding with abalone purfling, African mahogany neck, 24-fret extended bound rosewood fingerboard with pearl cherry blossom inlays, bound headstock with white overlay and screened logo/colored cherry blossom design, three-per-side gold tuners, rosewood bridge, System 29 mono two-way bridge/body piezo pickups, three-band EQ, EQ pass, mix, volume, and AMF controls, available in Pearl Snow White finish, 25.625 in. scale, mfg. 1997 only. |

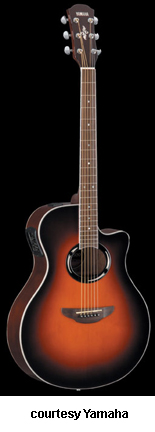

| APX500 | | - single smooth cutaway folk-style thin body, spruce top, nato back and sides, oval soundhole with black/white custom rosette, top and back three-ply body binding, nato neck, 14/22-fret bound rosewood fingerboard with dot inlays, matching finish headstock overlay with logo and custom design inlays, three-per-side chrome tuners, rosewood bridge, black bridge pins with white dots, no pickguard, System 55TA electronics, available in Black, Dark Red Burst, Natural, Old Violin Sunburst, or Oriental Blue Burst finish, 25 in. scale, mfg. summer 2006-present. |
| APX500 FM | | - similar to the APX500, except has a flame maple top, available in Old Violin Sunburst or Oriental Blue Burst finish, new 2009. |

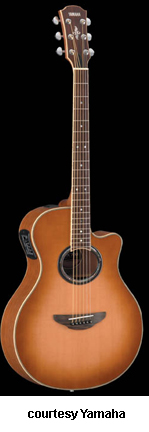

| APX700 | | - single smooth cutaway folk-style thin body, solid spruce top, nato back and sides, oval soundhole with abalone design custom rosette, top and back five-ply body binding, nato neck, 14/22-fret bound rosewood fingerboard with dot inlays, bound headstock with matching finish overlay and logo/custom design inlays, three-per-side chrome tuners, rosewood bridge, black bridge pins with white dots, no pickguard, System 56 electronics, available in Black, Cobalt Aqua, Dusk Sun Red, Natural, or Sand Burst finish, 25.5625 in. scale, mfg. summer 2006-present. |

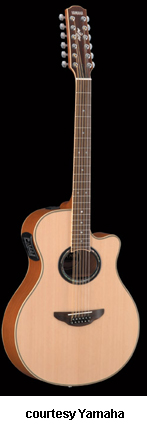

| APX700-12 12-String | | - similar to the APX700, except in 12-string configuration with six-per-side tuners, available in Natural finish, 25 in. scale, mfg. summer 2006-present. |

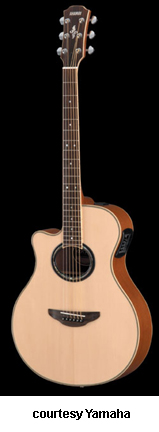

| APX700L Left-Handed | | - similar to the APX700, except in left-handed configuration, available in Natural finish, mfg. summer 2006-present. |

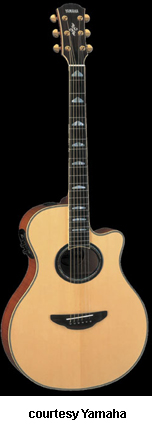

| APX900 | | - single smooth cutaway folk-style thin body, solid spruce top, flame maple back and sides, oval soundhole with abalone design custom rosette, top and back five-ply body binding, nato neck, 14/22-fret bound ebony fingerboard with custom triangular inlays, bound headstock with rosewood overlay and logo/custom design inlays, three-per-side gold tuners, rosewood bridge, black bridge pins with white dots, no pickguard, System 57 electronics, available in Crimson Red Burst, Mocha Black, Natural, or Ultramarine finish, 25.5625 in. scale, mfg. summer 2006-present. |
 |
| APX SPECIAL I | | - single smooth cutaway APX-style body, sycamore tiger stripe top, agathis back and sides, oval soundhole with multi-ring rosette, multi-ply top binding, nato neck, 22-fret rosewood fingerboard with dot inlays, black headstock overlay with logo and decorative design, three-per-side chrome tuners, rosewood bridge, no pickguard, System 26 mono one-way Piezo bridge pickup, pop-up volume, treble, and bass controls, available in Red Blond or See-Through Blue Burst finish, 25.625 in. scale, mfg. 1992-94. |
| APX SPECIAL II | | - single smooth cutaway APX-style body, bird's-eye maple top, agathis back and sides, oval soundhole with multi-ring rosette, multi-ply top binding, nato neck, 22-fret rosewood fingerboard with dot inlays, black headstock overlay with logo and decorative design, three-per-side chrome tuners, rosewood bridge, no pickguard, System 26 mono one-way Piezo bridge pickup, pop-up volume, treble, and bass controls, available in Purple Burst or Trans. Red Burst finish, 25.625 in. scale, mfg. 1992-94. |
| APX T1 (TRAVEL SERIES) | | - single rounded cutaway small body, spruce top, agathis/alder back and sides, oval soundhole, with three-stripe rosette, bound body, maple neck, 22-fret rosewood fingerboard with pearl dot inlay, blackface headstock overlay with screened logo and flowers inlays, three-per-side chrome tuners, string-through rosewood bridge, piezo bridge pickup with System 35 one-way electronics, available in BlueBurst or Violin Sunburst finish, 23.625 in. scale, mfg. 1995-2002. |
| APX T1N (TRAVEL SERIES) | | - nylon string configuration, single rounded cutaway small body, spruce top, agathis/alder back and sides, oval soundhole, with three-stripe rosette, bound body, maple neck, 22-fret rosewood fingerboard with pearl dot inlay, slotted headstock with blackface overlay and screened logo/flowers inlays, three-per-side chrome tuners, tied rosewood bridge, piezo bridge pickup with System 35 1 way electronics, available in Natural finish, 23.625 in. scale, mfg. 1995-2002. |
|
|
