 YAMAHA | | ACOUSTIC: L SERIES | | Yamaha's L Series represent their standard production top-of-the-line models. In 1978, Yamaha introduced their first L Series guitars in response to the popularity of custom guitar designs. By the mid-1980s, the L Series had expanded to several different body shapes including the LA, LL, and LS designs. In the 1990s other body shapes included the LD and LW designs. In 2004, Yamaha reorganized their entire L Series line into three body shapes: LJ, LL, and LS and four distinct trim offerings: 6, 16, 26, and 36. | | L-5A | | - dreadnought-style body, solid spruce top, two-piece solid mahogany back, solid mahogany sides, round soundhole with three-ring rosette, multi-ply body binding, African mahogany neck, 14/20-fret Indian rosewood fingerboard with dot inlays, mahogany headstock overlay with logo, three-per-side chrome tuners, Indian rosewood bridge, black pickguard, available in Natural gloss finish, mfg. 1978-1983. |
| L-10A | | - dreadnought-style body, solid spruce top, two-piece solid Indian rosewood back, solid Indian rosewood sides, round soundhole with three-ring rosette, multi-ply body binding, African mahogany neck, 14/20-fret Indian rosewood fingerboard with dot inlays, mahogany headstock overlay with logo, three-per-side chrome tuners, Indian rosewood bridge, black pickguard, available in Natural gloss finish, mfg. 1978-1983. |
| L-15A | | - dreadnought-style body, solid white spruce top, two-piece solid Indian rosewood back, solid Indian rosewood sides, round soundhole with three-ring herringbone rosette, cream body binding with herringbone purfling, herringbone back purfling, African mahogany neck, 14/20-fret ebony fingerboard with pearl diamond inlays, mahogany headstock overlay with logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural gloss finish, mfg. 1978-1983. |
| L-20A | | - dreadnought-style body, solid white spruce top, three-piece solid Indian rosewood back with a solid center wedge of Jacaranda, solid Indian rosewood sides, round soundhole with three-ring herringbone rosette, cream body binding with herringbone purfling, back herringbone purfling, African mahogany neck, 14/20-fret bound ebony fingerboard with pearl diamond inlays, bound headstock with mahogany overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural gloss finish, mfg. 1978-1983. |
| L-25A/L-25AT | | - dreadnought-style body, solid white spruce top, three-piece solid Jacaranda back and sides, solid Jacaranda sides, round soundhole with three-ring herringbone rosette, cream body binding with herringbone purfling, back herringbone purfling, Honduras mahogany neck, 14/20-fret bound ebony fingerboard with pearl oval inlays, bound headstock with mahogany overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural gloss finish (L-25A) or Natural tinted top with satin back and sides (L-25AT), mfg. 1978-1983. |
| LA-8 | | - dreadnought-style body, solid spruce top, Indian rosewood back and sides, round soundhole with three stripe abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound ebony fingerboard with pearl snowflake/cross inlays, bound rosewood headstock overlay with pearl logo inlay, three-per-side gold tuners, ebony bridge, white bridge pins with pearl dots, available in Natural finish, mfg. 1985-89, 1993-2003. |
| LA-18 | | - dreadnought-style body, solid spruce top, solid mahogany back and sides, round soundhole with three stripe abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound ebony fingerboard with pearl dot inlays, bound rosewood headstock overlay with pearl logo and shadowed "L" inlays, three-per-side gold tuners, ebony bridge, white bridge pins with pearl dots, available in Natural finish, mfg. 1990-96. |
| LA-28 | | - dreadnought-style body, solid spruce top, solid Indian rosewood back and sides, round soundhole with three stripe abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound ebony fingerboard with pearl snowflake/cross inlays, bound rosewood headstock overlay with pearl logo and shadowed "L" inlays, three-per-side gold tuners, ebony bridge, white bridge pins with pearl dots, available in Natural finish, mfg. 1985-1996. |
| LD-10 | | - dreadnought-style body, solid white spruce top, Indian rosewood back and sides, round soundhole with three-ring abalone rosette, white body binding with abalone purfling, African mahogany neck, 14/20-fret bound rosewood fingerboard with pearl dot inlays, bound headstock with rosewood overlay, logo, and "LD" inlays, three-per-side gold tuners, rosewood bridge, black bridge pins with pearl dots, black pickguard, available in Natural finish, mfg. 1990-94. |
| LD-10E | | - similar to the LD10, except has a two-way bridge/interal electronics with volume, treble, bass, and mix pop-up controls, mfg. 1990-94. |
| LJ6 | | - LJ jumbo-style body, solid Englemann spruce top, rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |

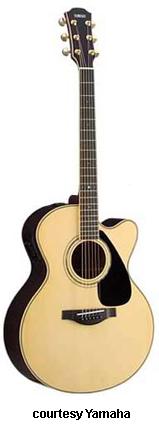

| LJX6C/LJX6CA Cutaway Electric | | - similar to the LJ-6, except has a single cutaway and System 45 two-way piezo/microphone electronics with volume, three-band EQ, mic. volume, and AMF slider controls (2004-08) or A.R.T. System 57 three-way electronics with master volume, bass volume, treble volume, three-band EQ, and digital tuner controls (new 2009), available in Natural finish, mfg. 2004-present. |
| LJ16 | | - LJ jumbo-style body, solid Englemann spruce top, solid rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |
| LJ26 | | - LJ jumbo-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring rosette, maple multi-ply body binding, five-ply mahogany/padauk neck, 14/20-fret ebony fingerboard with diamond inlays, rosewood headstock overlay with logo, three-per-side gold vintage tuners, ebony bridge, tortoise pickguard, available in Natural finish, mfg. 2004-present. |
| LJX26C Cutaway Electric | | - similar to the LJ26, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2005-present. |

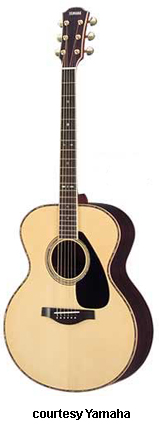

| LJ36 | | - LJ jumbo-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring abalone rosette, maple body binding with abalone purfling, maple back purfling, five-ply mahogany/padauk neck, 14/20-fret bound ebony fingerboard with diamond inlays, bound headstock with rosewood overlay and logo, three-per-side gold vintage tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |

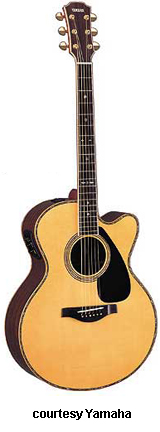

| LJX36C Cutaway Electric | | - similar to the LJ36, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2005-present. |
| LL-5 | | - dreadnought-style body, solid spruce top, African mahogany back and sides, scalloped bracing, round soundhole with three ring rosette, multi-ply body binding, mahogany neck, 14/20-fret Indian rosewood fingerboard with pearl dot inlays, rosewood headstock overlay with logo and shadowed "L" inlays, three-per-side chrome tuners, Indian rosewood bridge, black bridge pins with pearl dots, black pickguard, available in Natural finish, mfg. 1984-89. |
| LL-5-12 12-String | | - similar to the LL-5, except in 12-string configuration and six-per-side tuners, available in Natural finish, mfg. 1984-89. |
| LL-5C Cutaway | | - similar to the LL-5, except has a single cutaway, available in Natural finish, mfg. 1984-89. |
| LL-5EC Cutaway Electric | | - similar to the LL-5C Cutaway, except has electronics, available in Natural finish, mfg. 1984-89. |

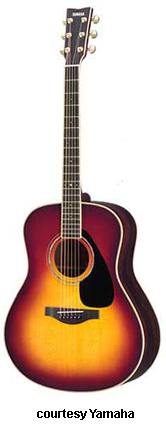

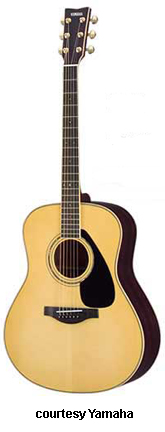

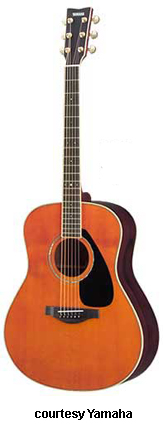

| LL6 | | - LL dreadnought-style body, solid Englemann spruce top, rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural, Sunburst, or Tinted Natural finish, mfg. 2004-present. |
| LLX6/LLX6A Electric | | - similar to the LL6, except has System 54 one-way direct out electronics (2004-08) or A.R.T. System 57 three-way electronics with master volume, bass volume, treble volume, three-band EQ, and digital tuner controls (new 2009), available in Black, Brown Sunburst, Natural, or Tobacco Brown Sunburst finish, mfg. 2004-present. |
| LLX6 DN DAVE NAVARRO SIGNATURE | | - LL dreadnought-style body, solid Englemann spruce top, satin sycamore back and sides, round soundhole with simple black two-ring rosette, black body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with star inlays, black headstock overlay with logo and Dave Navarro design inlays, three-per-side black tuners with pearl buttons, ebony bridge, black pickguard, System 45 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, AMF, three-band EQ, and phase switch controls, available in White finish, 25.5625 in. scale, mfg. 2005-07. |
| LL-10 | | - dreadnought-style body, solid spruce top, African mahogany back and sides, scalloped bracing, round soundhole with three ring rosette, multi-ply body binding, mahogany neck, 14/20-fret bound Indian rosewood fingerboard with pearl dot inlays, bound headstock with rosewood overlay, logo, and shadowed "L" inlays, three-per-side chrome tuners, Indian rosewood bridge, black bridge pins with pearl dots, black pickguard, available in Natural finish, mfg. 1984-89. |
| LL-11 | | - round shoulder dreadnought-style body, solid spruce top, Indian rosewood back and sides, scalloped bracing, round soundhole with three-ring abalone rosette, white body binding with abalone purfling, mahogany neck, 14/20-fret Indian rosewood fingerboard with pearl dot inlays, bound headstock with rosewood overlay, logo, and shadowed "L" inlays, three-per-side gold tuners, Indian rosewood bridge, black pickguard, available in Natural finish, mfg. 1995-2003. |
| LL-11E Electric | | - similar to the LL-11, except has System 38 two-way electronics with an external preamp (volume, three-band EQ, AMF, Mix, and EQ pass controls), available in Natural finish, mfg. 1995-2003. |
| LL-15 | | - dreadnought-style body, solid spruce top, solid mahogany back and sides, scalloped bracing, round soundhole with three ring rosette, multi-ply body binding, mahogany neck, 14/20-fret ebony fingerboard with pearl dot inlays, rosewood headstock overlay with logo and shadowed "L" inlays, three-per-side gold tuners, ebony bridge, black bridge pins with pearl dots, black pickguard, available in Natural finish, mfg. 1984-1996. |
| LL-15C Cutaway | | - similar to the LL-15, except has a single cutaway, available in Natural finish, mfg. 1984-89. |
| LL-15EC Cutaway Electric | | - similar to the LL-15C, except has electronics, available in Natural finish, mfg. 1984-89. |
| LL16 | | - LJ jumbo-style body, solid Englemann spruce top, solid rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |

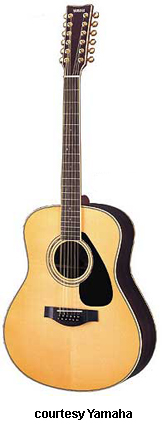

| LL16-12 12-String | | - similar to the LL16, except in 12-string configuration with six-per-side tuners, available in Natural finish, mfg. 2005-present. |
| LLX16 Electric | | - similar to the LL16, except has System 60 A.R.T. three-way electronics with master volume, bass volume, middle volume, and treble volume pop-up controls, available in Black, Brown Sunburst, Natural, or Tobacco Brown Sunburst finish, new 2009. |

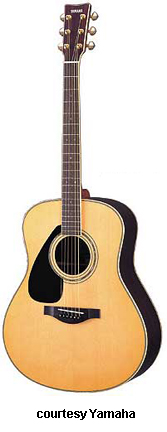

| LL16L Left-Handed | | - similar to the LL16, except in left-handed configuration, available in Natural finish, mfg. 2005-present. |

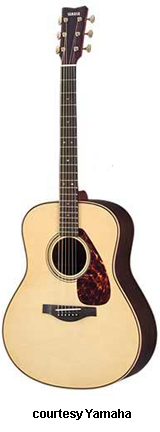

| LL26 | | - LL dreadnought-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring rosette, maple multi-ply body binding, five-ply mahogany/padauk neck, 14/20-fret ebony fingerboard with diamond inlays, rosewood headstock overlay with logo, three-per-side gold vintage tuners, ebony bridge, tortoise pickguard, available in Natural finish, mfg. 2004-present. |

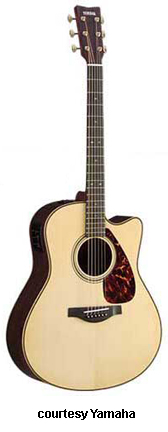

| LLX26C Cutaway Electric | | - similar to the LL26, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2004-present. |
| LLX26 Electric | | - similar to the LL26, except has System 60 A.R.T. three-way electronics with master volume, bass volume, middle volume, and treble volume pop-up controls, available in Natural finish, new 2009. |
| LL-35 | | - dreadnought-style body, solid spruce top, solid Jacaranda back and sides, scalloped bracing, round soundhole with three ring abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret ebony bound fingerboard with pearl snowflake inlays, bound headstock with rosewood overlay, logo, and shadowed "L" inlays, three-per-side gold tuners, ebony bridge, black bridge pins with pearl dots, black pickguard, available in Natural finish, mfg. 1984-1996. |

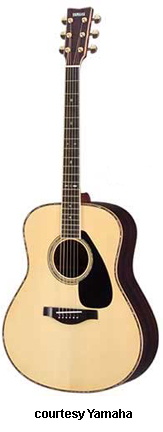

| LL36 | | - LL dreadnought-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring abalone rosette, maple body binding with abalone purfling, maple back purfling, five-ply mahogany/padauk neck, 14/20-fret bound ebony fingerboard with diamond inlays, bound headstock with rosewood overlay and logo, three-per-side gold vintage tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |

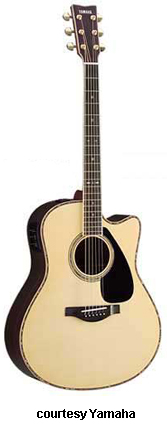

| LLX36C Cutaway Electric | | - similar to the LL36, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2004-present. |
| LL400 | | - LL-style body, solid Sitka spruce top, solid mahogany back and sides, round soundhole with three-ring abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with MOP snowflake inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, rosewood bridge, black bridge pins with white dots, clear pickguard, available in Natural gloss finish, mfg. 1999-2003. |
| LLX400 Electric | | - similar to the LL400, except, has System 40G two-way piezo/mic electronics with volume, three-band EQ, blend, AMF, and mid controls, soundhole cover included, available in Natural finish, mfg. 2000-03. |
| LL500 | | - LL-style body, solid Sitka spruce top, solid rosewood back and sides, round soundhole with three-ring abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with MOP snowflake inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, rosewood bridge, black bridge pins with white dots, clear pickguard, available in Natural gloss finish, mfg. 1999-2003. |
| LLX500C Cutaway Electric | | - similar to the LL500, except has a single cutaway and System 41 two-way piezo/mic electronics with volume, three-band EQ, mic. volume, mic. tone, AMF, and phase switch controls, soundhole cover included, available in Natural finish, mfg. 2001-03. |

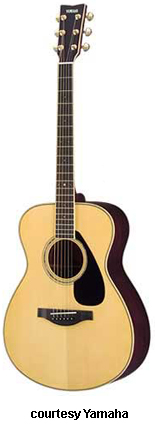

| LS6 | | - LS concert-style body, solid Englemann spruce top, rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |
| LS16 | | - LS concert-style body, solid Englemann spruce top, solid rosewood back and sides, round soundhole with three-ring abalone rosette, cream multi-ply body binding, three ply mahogany/rosewood neck, 14/20-fret bound ebony fingerboard with dot inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |
| LS26 | | - LS concert-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring rosette, maple multi-ply body binding, five-ply mahogany/padauk neck, 14/20-fret ebony fingerboard with diamond inlays, rosewood headstock overlay with logo, three-per-side gold vintage tuners, ebony bridge, tortoise pickguard, available in Natural finish, mfg. 2004-present. |
| LSX26C Cutaway Electric | | - similar to the LS26, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2005-present. |

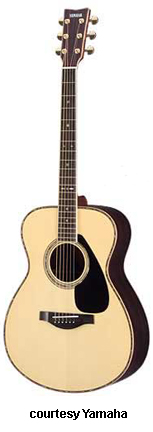

| LS36 | | - LS concert-style body, solid Englemann spruce top, solid Indian rosewood back and sides, round soundhole with three-ring abalone rosette, maple body binding with abalone purfling, maple back purfling, five-ply mahogany/padauk neck, 14/20-fret bound ebony fingerboard with diamond inlays, bound headstock with rosewood overlay and logo, three-per-side gold vintage tuners, ebony bridge, black pickguard, available in Natural finish, mfg. 2004-present. |

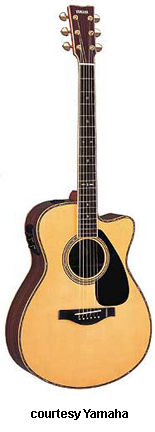

| LSX36C Cutaway Electric | | - similar to the LS36, except has a single cutaway and System 41 two-way piezo/microphone electronics with volume, mic. volume, mic. tone, three-band EQ, AMF, and phase switch controls (2004-07) or System 60 three-way electronics with Master Volume, bass volume, treble volume, and main volume push-in knobs (2008-present), mfg. 2005-present. |
| LS400 | | - LS concert-style body, solid Sitka spruce top, solid mahogany back and sides, round soundhole with three-ring abalone rosette, multi-ply ivory cell body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with MOP snowflake inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, rosewood bridge, black bridge pins with white dots, clear pickguard, available in Black, Natural, or Vintage Tint finish, mfg. 1999-2003. |
| LSX400 Electric | | - similar to the LS400, except, has System 40G two-way piezo/microphone electronics system with three-band EQ, volume, blend, midrange, and AMF controls, soundhole cover included, available in Natural finish, mfg. 2000-03. |
| LS500 | | - LS concert-style body, solid Sitka spruce top, solid rosewood back and sides, round soundhole with three-ring abalone rosette, multi-ply body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with MOP snowflake inlays, bound headstock with rosewood overlay and logo, three-per-side gold tuners, rosewood bridge, black bridge pins with white dots, clear pickguard, available in Natural gloss finish, mfg. 1999-2003. |
| LSX500C Cutaway Electric | | - similar to the LS500, except has a single cutaway and System 41 two-way piezo/microphone electronics system with three-band EQ, volume, blend, midrange, AMF, and phase switch controls, soundhole cover included, available in Natural finish, mfg. 2001-03. |
| LW5 | | - dreadnought-style body, solid spruce top, mahogany back and sides, scalloped bracing, round soundhole with three-ring rosette, multi-ply body binding, mahogany neck, 14/20-fret rosewood fingerboard, three-per-side chrome tuners, rosewood bridge, black bridge pins with white dots, no pickguard, available in Natural finish, mfg. 1995-96. |
| LW5C Cutaway Electric | | - similar to the LW5, except has a single smooth cutaway and one-way piezo electronics with volume, three-band EQ, AMF, and EQ pass controls, available in Natural finish, mfg. 1996 only. |
| LW15 | | - dreadnought-style body, solid spruce top, mahogany back and sides, scalloped bracing, round soundhole with three-ring rosette, multi-ply body binding, mahogany neck, 14/20-fret bound rosewood fingerboard with pearl flower inlay, bound headstock with rosewood overlay and pearl logo inlay, three-per-side chrome tuners, rosewood bridge, black bridge pins with white dots, black pickguard, available in Natural finish, mfg. 1994-96. |
| LW15C Cutaway Electric | | - similar to the LW15, except has a single smooth cutaway and System 28C one-way piezo electronics with volume, three-band EQ, AMF, and EQ pass controls, available in Natural finish, mfg. 1996 only. |
| LW25 | | - dreadnought-style body, solid spruce top, Indian rosewood back and sides, scalloped bracing, round soundhole with three-ring rosette, multi-ply body binding, mahogany neck, 14/20-fret bound ebony fingerboard with pearl flower inlays, bound headstock with rosewood overlay and pearl logo inlay, three-per-side gold tuners, ebony bridge, black bridge pins with white dots, black pickguard, available in Natural finish, mfg. 1994-96. |
|
|
